STMicroelectronicsSwitzerland

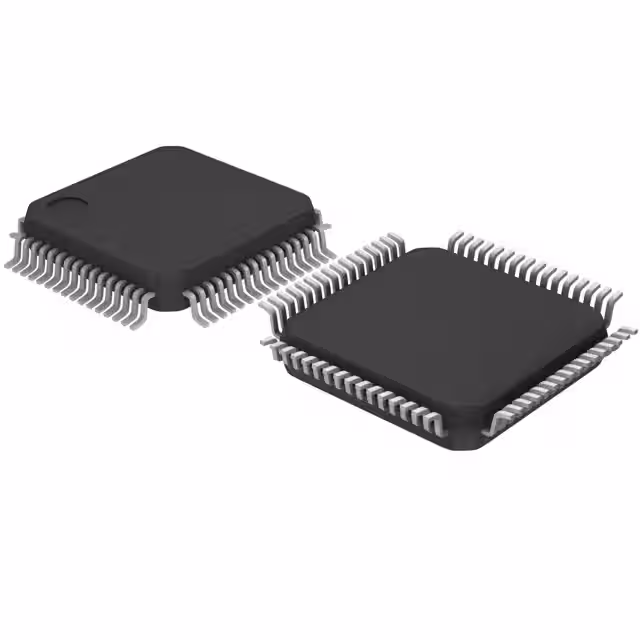

IC MCU 32BIT 32KB FLASH 64LQFP
All alternatives
View full reportTechnical parameters
Key specs
CoreCORTEX-M3
Core size32 bit
Speed72 MHzMax
Flash32 kB
RAM10 kB
I/O count51
Supply voltage2 ~ 3.6 V
| Power | |
|---|---|
| Voltage - Supply (Vcc/Vdd) | 2V ~ 3.6V |
| Environment and package | |
| Core Size | 32-Bit Single-Core |
| EEPROM Size | - |
| Mounting Type | Surface Mount |
| Operating Temperature | -40°C~85°C(TA) |
| Package | Tray |
| Package / Case | 64-LQFP |
| Program Memory Size | 32KB (32K x 8) |
| RAM Size | 10K x 8 |
| Other | |
| Base Product Number | STM32F103 |
| Connectivity | CANbus, I²C, IrDA, LINbus, SPI, UART/USART, USB |
| Core Processor | ARM® Cortex®-M3 |
| Data Converters | A/D 16x12b |
| Mfr | STMicroelectronics |
| Number of I/O | 51 |
| Oscillator Type | Internal |
| Peripherals | DMA, Motor Control PWM, PDR, POR, PVD, PWM, Temp Sensor, WDT |
| Product Status | Obsolete |
| Program Memory Type | FLASH |
| Series | STM32F1 |
| Speed | 72MHz |
