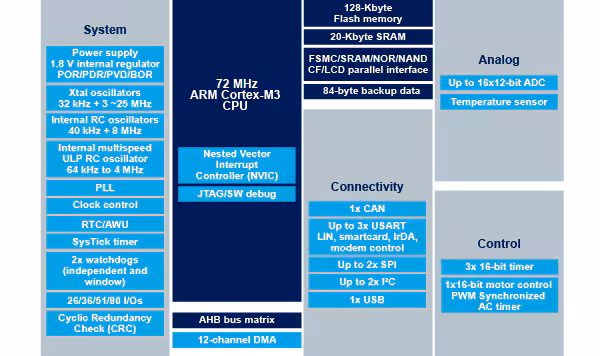

STM32F103CB
STMicroelectronicsSwitzerland

STM32F103CB

See alternativesAsk AI FAEDatasheet PDF

All alternatives

View full report

Technical parameters

Power
ADC通道数10
低功耗模式0
最大工作电压3.6V
最小工作电压2V
静态功耗373mA
静态工作功耗373mA
静态工作电流373mA
AC and DC characteristics
ADC最高分辨率12bit
最大主核频率72MHz
Environment and package
内置温度传感器0
封装类型1QFP
尺寸规格17*7*1.6mm
最大工作温度85℃
最小工作温度-40℃
温度传感器0
Other
AES加密0
CAN1
I2C2
I/O数量37
LCD接口0
PLL锁相环0
RAM20KB
RAM长度20KB
ROM128KB
ROM长度128KB
SPI2
UART3
USART3
USB功能1
以太网功能0
内置ADC1
内置DAC0
内置LCD控制器0
内置缓存器0
图像处理器0
实时时钟1
引脚数量148
最大主频72MHz
电容触摸功能0
看门狗功能0
看门狗定时器 0
触摸外设0
触摸按键0
计数器数量4
边界扫描0
边界扫描功能0
集成缓存器0
