STMicroelectronicsSwitzerland

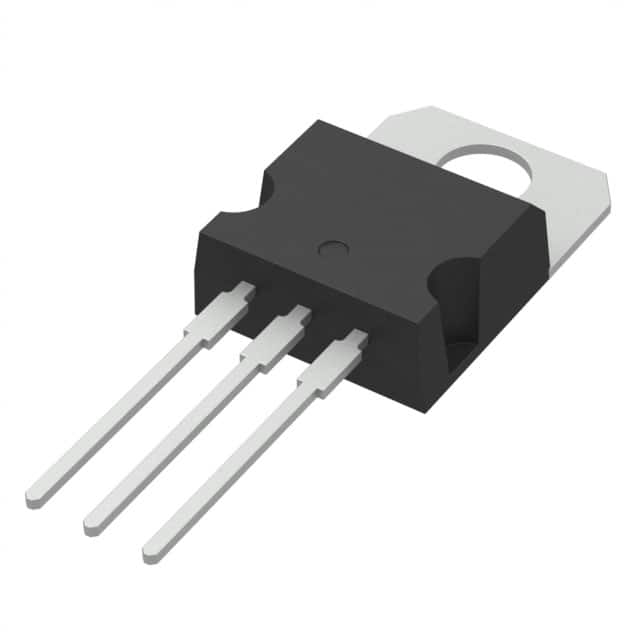

IGBT 600V 40A 167W TO220AB
All alternatives
View full reportTechnical parameters
| Power | |
|---|---|
| Current - Collector (Ic) (Max) | 40 A |
| Current - Collector Pulsed (Icm) | 80 A |
| Power - Max | 167 W |
| Voltage - Collector Emitter Breakdown (Max) | 600 V |
| Environment and package | |
| Mounting Type | Through Hole |
| Operating Temperature | -55°C~175°C(TJ) |
| Package | Tube |
| Package / Case | TO-220-3 |
| Supplier Device Package | TO-220 |
| Other | |
| Base Product Number | STGP20 |
| Gate Charge | 116 nC |
| IGBT Type | Trench Field Stop |
| Input Type | Standard |
| Mfr | STMicroelectronics |
| Product Status | Obsolete |
| Series | - |
| Switching Energy | 200µJ (on), 130µJ (off) |
| Td (on/off) @ 25°C | 38ns/149ns |
| Test Condition | 400V, 20A, 15V |
| Vce(on) (Max) @ Vge, Ic | 2.2V @ 15V, 20A |
