SankenJapan

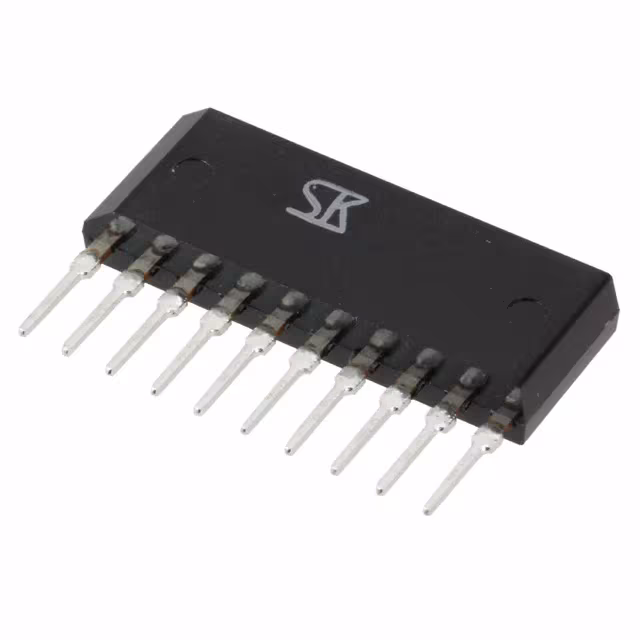

TRANS 2NPN/2PNP DARL 60V 10SIP
All alternatives
View full reportTechnical parameters
| Power | |
|---|---|
| Current - Collector Cutoff (Max) | 100µA (ICBO) |
| Current - Collector (Ic) (Max) | 4A |
| Power - Max | 4W |
| Voltage - Collector Emitter Breakdown (Max) | 60V |
| AC and DC characteristics | |
| DC Current Gain (hFE) (Min) @ Ic, Vce | 1000 @ 3A, 4V |
| Frequency - Transition | - |
| Environment and package | |
| Mounting Type | Through Hole |
| Operating Temperature | 150°C(TJ) |
| Package | Bulk |
| Package / Case | 10-SIP |
| Supplier Device Package | 10-SIP |
| Other | |
| Base Product Number | STA434 |
| Mfr | Sanken |
| Product Status | Active |
| Series | - |
| Transistor Type | 2 NPN, 2 PNP Darlington (H-Bridge) |
| Vce Saturation (Max) @ Ib, Ic | 2V @ 10mA, 3A |
