PanasonicJapan

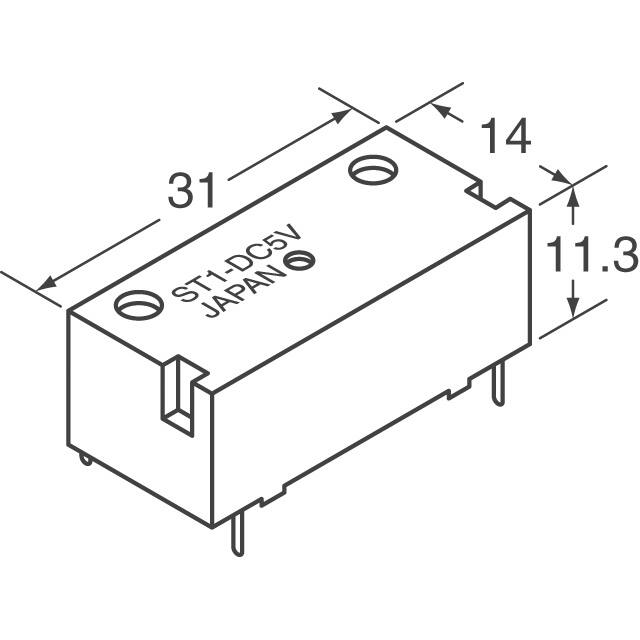

RELAY GEN PURPOSE DPST 8A 5V
All alternatives
View full reportTechnical parameters
Key specs
Coil voltage5 V
Contact formDPST-NO
Contact current8 AMax
Switching voltage250 VMax
| Power | |
|---|---|
| Coil Current | 47.6 mA |
| Coil Voltage | 5VDC |
| Contact Rating (Current) | 8 A |
| Must Operate Voltage | 4 VDC |
| Must Release Voltage | 0.5 VDC |
| Switching Voltage | 250VAC - Max |
| Environment and package | |
| Mounting Type | Through Hole |
| Operating Temperature | -40°C~60°C |
| Package | Tube |
| Other | |
| Base Product Number | ST1-DC |
| Coil Insulation | - |
| Coil Resistance | 105 Ohms |
| Coil Type | Non Latching |
| Contact Form | DPST-NO/NC (1 Form A, 1 Form B) |
| Contact Material | Silver Alloy |
| Features | - |
| Mfr | Panasonic Electric Works |
| Operate Time | 15 ms |
| Product Status | Obsolete |
| Relay Type | General Purpose |
| Release Time | 10 ms |
| Seal Rating | Sealed - Fully |
| Series | ST |

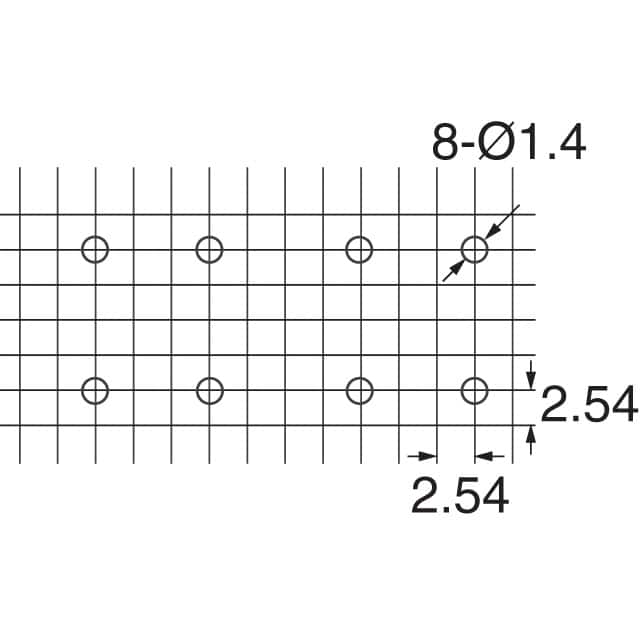

| Termination Style | PC Pin |
Documents
No documents are linked to this part yet.
