Analog Devices Inc.United States
IC AUDIO 1 CIRCUIT 8SOIC
All alternatives
View full reportTechnical parameters
Key specs
Supply voltage12 ~ 36 V
Input offset voltage25 µVTyp
Quiescent current2.5 mATyp
Channels1
| Power | |
|---|---|
| Current - Output / Channel | 45 mA |
| Current - Supply | 2.5mA |
| Voltage - Supply Span (Max) | 36 V |
| Voltage - Supply Span (Min) | 12 V |
| AC and DC characteristics | |
| -3db Bandwidth | 3 MHz |
| Slew Rate | 9.5V/µs |
| Voltage - Input Offset | 25 µV |
| Environment and package | |
| Mounting Type | Surface Mount |
| Operating Temperature | -40°C~85°C |
| Package | Tape & Reel (TR); Cut Tape (CT); Digi-Reel® |

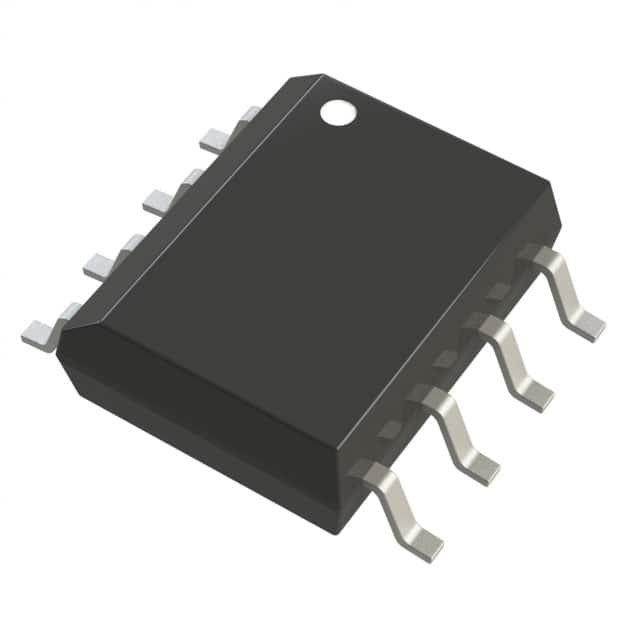

| Package / Case | 8-SOIC (0.154", 3.90mm Width) |
| Supplier Device Package | 8-SOIC |
| Other | |
| Amplifier Type | Audio |
| Base Product Number | SSM2141 |
| Mfr | Analog Devices Inc. |
| Number of Circuits | 1 |
| Output Type | - |
| Product Status | Active |
| Series | - |
