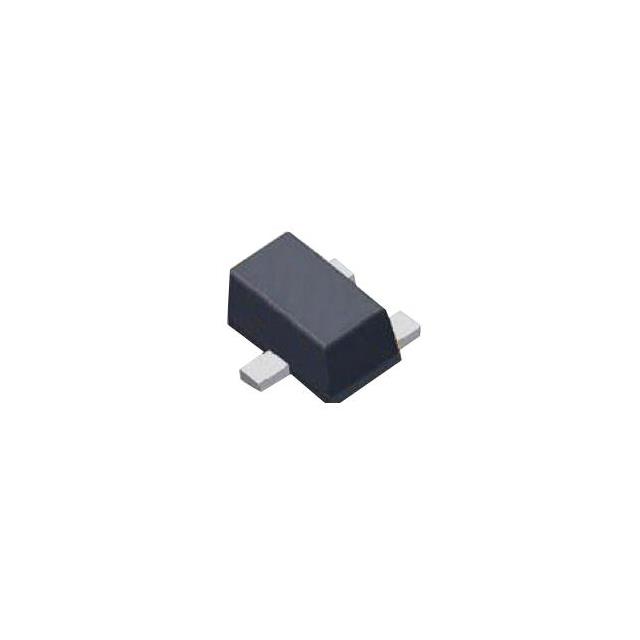

MOSFET, P-CH, SINGLE, -0.45A, -2
All alternatives
View full reportTechnical parameters
Key specs
ChannelP-channel
Drain-source voltage20 V
Continuous drain current450 mA
On-resistance600 mΩMax · 300mA
Gate threshold voltage1 VMax · 250μA
| Power | |
|---|---|
| Current - Continuous Drain (Id) @ 25°C | 450mA (Tc) |
| Drain to Source Voltage (Vdss) | 20 V |
| Drive Voltage (Max Rds On, Min Rds On) | 1.2V, 4.5V |
| Power Dissipation (Max) | 312mW |
| Environment and package | |
| Mounting Type | Surface Mount |
| Operating Temperature | -55°C ~ 150°C |
| Package | Tape & Reel (TR) Cut Tape (CT) Digi-Reel® |
| Package / Case | SOT-523 |
| Supplier Device Package | SOT-523 |
| Other | |
| FET Feature | - |
| FET Type | P-Channel |
| Gate Charge (Qg) (Max) @ Vgs | 1 nC @ 4.5 V |
| Input Capacitance (Ciss) (Max) @ Vds | 40 pF @ 10 V |
| Mfr | Good-Ark Semiconductor |
| Product Status | Active |
| Rds On (Max) @ Id, Vgs | 600mOhm @ 300mA, 4.5V |
| Series | - |
| Technology | MOSFET (Metal Oxide) |
| Vgs (Max) | ±8V |
| Vgs(th) (Max) @ Id | 1V @ 250µA |
