Vishay General Semiconductor - Diodes DivisionUnited States

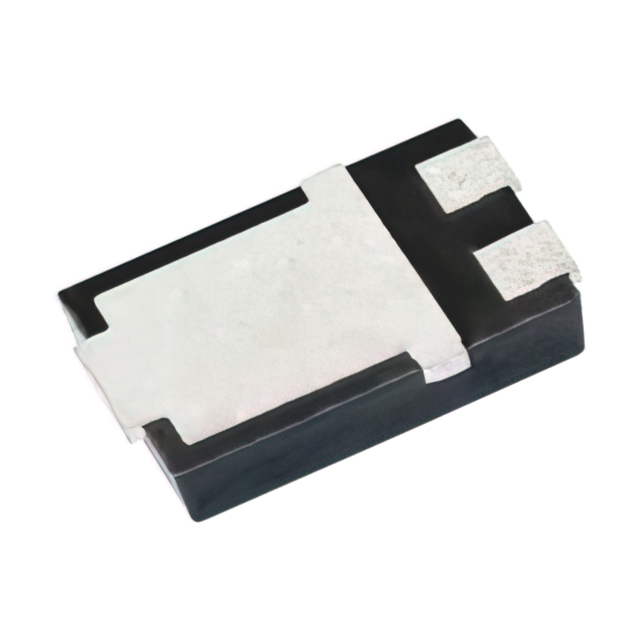

DIODE SCHOTTKY 100V 5A TO277A
All alternatives
View full reportTechnical parameters
Key specs
Reverse voltage100 V
Average rectified current5 A
Forward voltage680 mVMax · 5 A
TypeSchottkyFast Recovery =< 500ns，> 200mA (Io)
| Power | |
|---|---|
| Current - Average Rectified (Io) | 5A |
| Current - Reverse Leakage @ Vr | 15 µA @ 100 V |
| Voltage - DC Reverse (Vr) (Max) | 100 V |
| Voltage - Forward (Vf) (Max) @ If | 680 mV @ 5 A |
| Environment and package | |
| Grade | Automotive |
| Mounting Type | Surface Mount |
| Operating Temperature - Junction | -55°C ~ 150°C |
| Package / Case | TO-277, 3-PowerDFN |
| Qualification | AEC-Q101 |
| Supplier Device Package | TO-277A (SMPC) |
| Other | |
| Base Product Number | SS5P10 |
| Capacitance @ Vr, F | 130pF @ 4V, 1MHz |
| Mfr | Vishay General Semiconductor - Diodes Division |
| Packaging | Tape & Reel (TR) |
| Part Status | Obsolete |
| Series | - |
| Speed | Fast Recovery =< 500ns, > 200mA (Io) |
| Technology | Schottky |
