SolidRun LTDIsrael

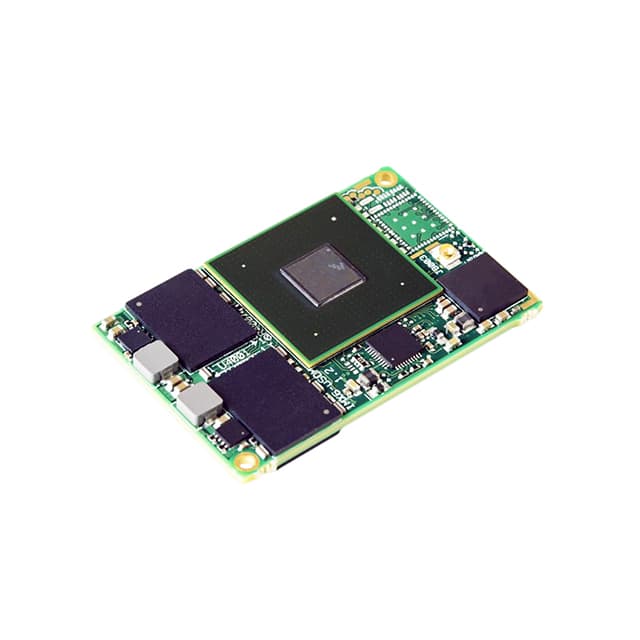

SOM QUAD PRO IND TEMP 2GB 1GHZ
All alternatives
View full reportTechnical parameters
| Power | |
|---|---|
| Power (Watts) | - |
| Environment and package | |
| Operating Temperature | -40°C~85°C |
| Package | Box |
| Size / Dimension | 1.850" x 1.180" (47.00mm x 30.00mm) |
| Other | |
| Analog Input:Output | - |
| Base Product Number | SRMX6 |
| Cooling Type | - |
| Core Processor | ARM® Cortex®-A9, i.MX6Quad |
| Digital I/O Lines | 75 |
| Ethernet | 10/100/1000Mbps (1) |
| Expansion Site/Bus | SATA, PCIe |
| Form Factor | - |
| Mfr | SolidRun LTD |
| Number of Cores | 4 |
| Product Status | Active |
| RAM Capacity/Installed | 2GB/2GB |
| Series | MicroSoM i4Pro |
| Speed | 1.2GHz |
| Storage Interface | eMMC, NOR-Flash, PCIeSSD, SD/mSD |
| USB | USB 2.0 (1), USB OTG (1) |
| Video Outputs | DSI, HDMI, LVDS |
| Watchdog Timer | - |
