Panjit International Inc.Taiwan, China

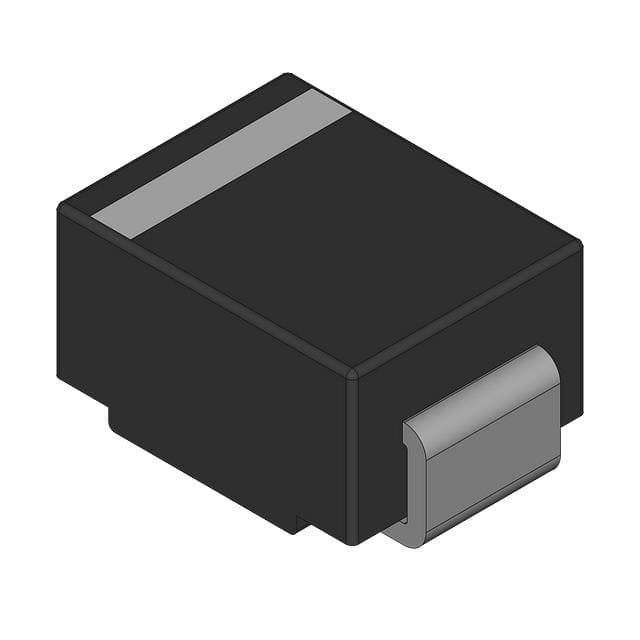

DIODE SCHOTTKY 45V 5A SMB
All alternatives
View full reportTechnical parameters
Key specs
Reverse voltage45 V
Average rectified current5 A
Forward voltage490 mVMax · 5 A
TypeSchottkyFast Recovery =< 500ns，> 200mA (Io)
| Power | |
|---|---|
| Current - Average Rectified (Io) | 5A |
| Current - Reverse Leakage @ Vr | 210 µA @ 45 V |
| Voltage - DC Reverse (Vr) (Max) | 45 V |
| Voltage - Forward (Vf) (Max) @ If | 490 mV @ 5 A |
| Environment and package | |
| Mounting Type | Surface Mount |
| Operating Temperature - Junction | -55°C~150°C |
| Package | Tape & Reel (TR); Cut Tape (CT); Digi-Reel® |
| Package / Case | DO-214AA, SMB |
| Supplier Device Package | SMB (DO-214AA) |
| Other | |
| Capacitance @ Vr, F | 350pF @ 4V, 1MHz |
| Diode Type | Schottky |
| Mfr | Panjit International Inc. |
| Product Status | Active |
| Series | Automotive, AEC-Q101 |
| Speed | Fast Recovery =< 500ns, > 200mA (Io) |
