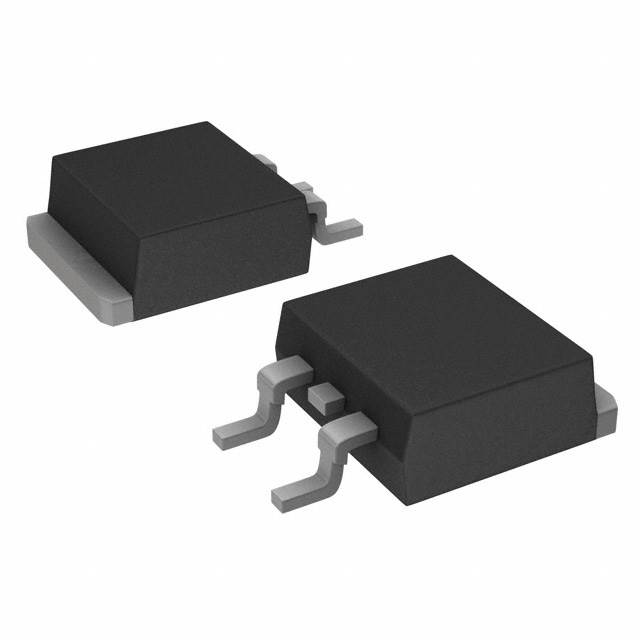

MOSFET N-CH 100V 40A TO252 REV
All alternatives
View full reportTechnical parameters
Key specs
ChannelN-channel
Drain-source voltage100 V
Continuous drain current40 A
On-resistance25 mΩMax · 40A
Gate threshold voltage2.5 VMax · 250μA
| Power | |
|---|---|
| Current - Continuous Drain (Id) @ 25°C | 40A (Tc) |
| Drain to Source Voltage (Vdss) | 100 V |
| Drive Voltage (Max Rds On, Min Rds On) | 4.5V, 10V |
| Power Dissipation (Max) | 136W (Tc) |
| Environment and package | |
| Mounting Type | Surface Mount |
| Operating Temperature | -55°C~175°C(TJ) |
| Package | Tape & Reel (TR); Cut Tape (CT); Digi-Reel® |
| Package / Case | TO-252-4, DPak (3 Leads + Tab) |
| Supplier Device Package | TO-252 (DPAK) Reverse Lead |
| Other | |
| Base Product Number | SQR40 |
| FET Feature | - |
| FET Type | N-Channel |
| Gate Charge (Qg) (Max) @ Vgs | 70 nC @ 10 V |
| Input Capacitance (Ciss) (Max) @ Vds | 3380 pF @ 25 V |
| Mfr | Vishay Siliconix |
| Product Status | Active |
| Rds On (Max) @ Id, Vgs | 25mOhm @ 40A, 10V |
| Series | TrenchFET® |
| Technology | MOSFET (Metal Oxide) |
| Vgs (Max) | ±20V |
| Vgs(th) (Max) @ Id | 2.5V @ 250µA |
