Sunon FansTaiwan, China

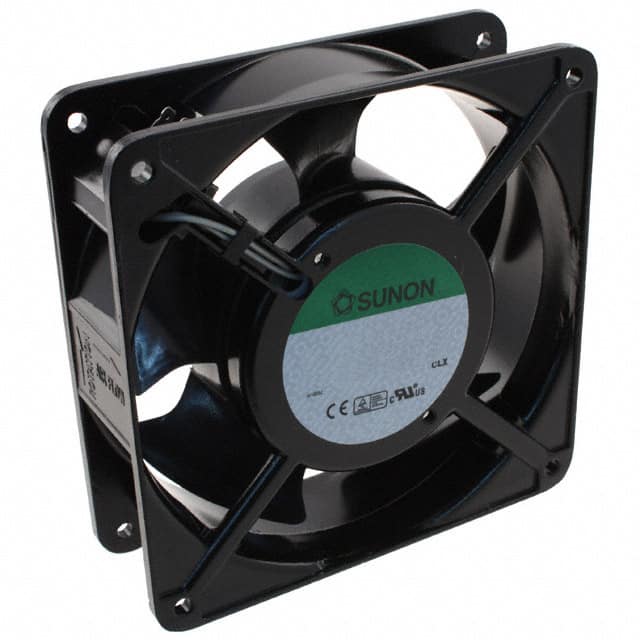

FAN AXIAL 119.5X38.5MM 115VAC
All alternatives
View full reportTechnical parameters
| Power | |
|---|---|
| Current Rating (Amps) | 0.220A |
| Power (Watts) | 20.00W |
| Voltage Range | - |
| Voltage - Rated | 115VAC |
| AC and DC characteristics | |
| Noise | 48.0dB(A) |
| Environment and package | |
| Lifetime @ Temp. | - |
| Operating Temperature | - |
| Package | Bulk |
| Size / Dimension | Square - 119.5mm L x 119.5mm H |
| Other | |
| Air Flow | 100.0 CFM (2.80m³/min) |
| Approval Agency | CE, CUR, TUV, UL |
| Base Product Number | SP109WR |
| Bearing Type | Ball |
| Fan Type | Tubeaxial |
| Features | - |
| Ingress Protection | - |
| Material - Blade | - |
| Material - Frame | Polybutylene Terephthalate (PBT) |
| Mfr | Sunon Fans |
| Product Status | Active |
| RPM | 2900 RPM |
| Series | SP |
| Static Pressure | 0.300 in H2O (74.7 Pa) |
| Termination | 2 Terminals |
| Weight | 1.03 lbs (467.2 g) |
| Width | 38.50mm |
Documents
No documents are linked to this part yet.
