Sunon FansTaiwan, China

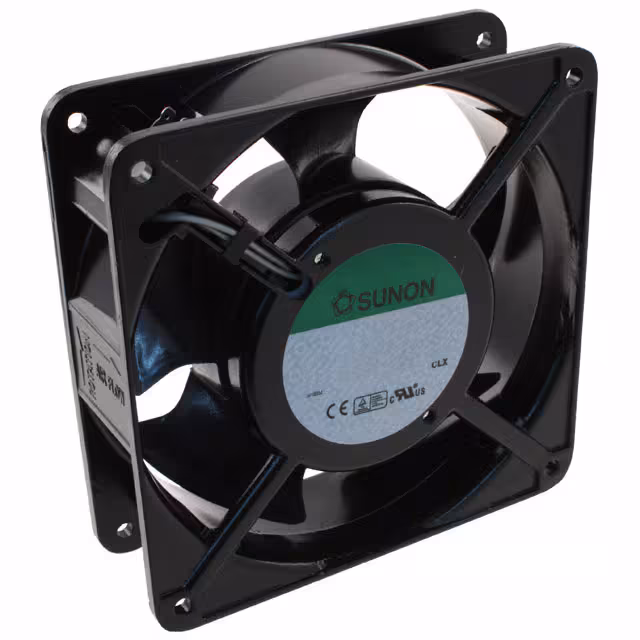

FAN AXIAL 119X25.5MM 115VAC TERM
All alternatives
View full reportTechnical parameters
| Power | |
|---|---|
| Current Rating (Amps) | 0.130A |
| Power (Watts) | 13.00W |
| Voltage Range | 85 ~ 125VAC |
| Voltage - Rated | 115VAC |
| AC and DC characteristics | |
| Noise | 38.0dB(A) |
| Environment and package | |
| Lifetime @ Temp. | - |
| Operating Temperature | 14~158°F(-10~70°C) |
| Package | Bulk |
| Size / Dimension | Square - 119mm L x 119mm H |
| Other | |
| Air Flow | 53.0 CFM (1.48m³/min) |
| Approval Agency | CE, CUR, TUV, UL |
| Base Product Number | SP103A |
| Bearing Type | Sleeve |
| Fan Type | Tubeaxial |
| Features | - |
| Ingress Protection | - |
| Material - Blade | Polybutylene Terephthalate (PBT) |
| Material - Frame | Aluminum |
| Mfr | Sunon Fans |
| Product Status | Active |
| RPM | 1800 RPM |
| Series | SP |
| Static Pressure | 0.120 in H2O (29.9 Pa) |
| Termination | 2 Terminals |
| Weight | 0.728 lb (330.22 g) |
| Width | 25.50mm |
