Littelfuse Inc.United States

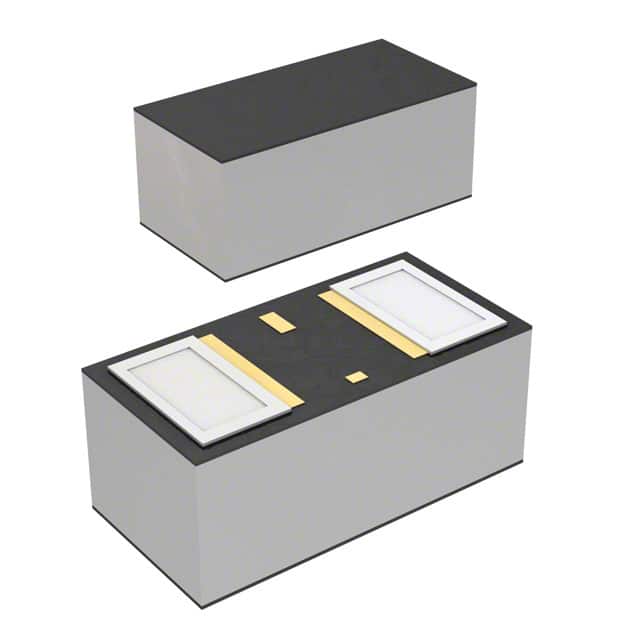

TVS DIODE 6VWM 9.2VC 0201 FLIP
All alternatives
View full reportTechnical parameters
Key specs
Reverse standoff voltage6 V
Breakdown voltage7.8 V
Clamping voltage9.2 VMax

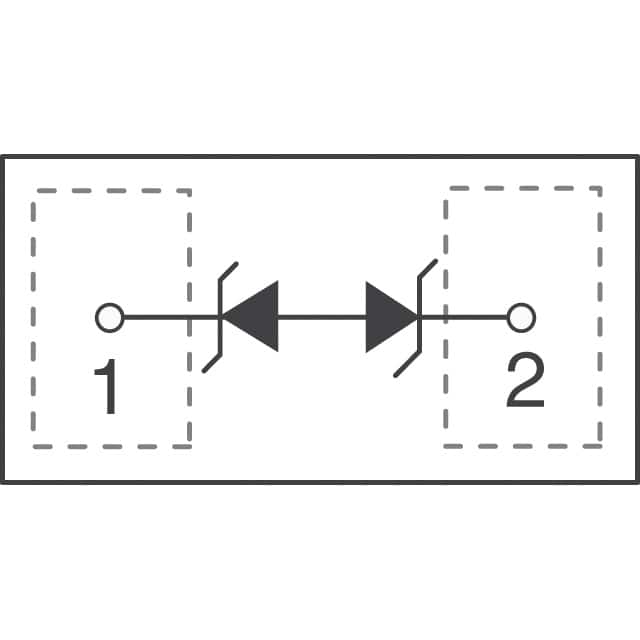

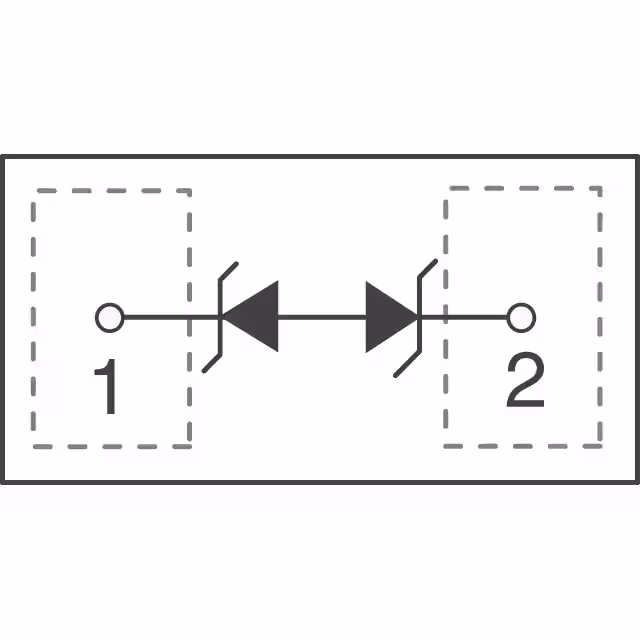

PolarityBidirectional
| Power | |
|---|---|
| Bidirectional Channels | 1 |
| Current - Peak Pulse (10/1000µs) | 5A (8/20µs) |
| Power Line Protection | No |
| Power - Peak Pulse | - |
| Voltage - Breakdown (Min) | 7.8V (Typ) |
| Voltage - Clamping (Max) @ Ipp | 9.2V |
| Voltage - Reverse Standoff (Typ) | 6V (Max) |
| AC and DC characteristics | |
| Capacitance @ Frequency | - |
| Environment and package | |
| Mounting Type | Surface Mount |
| Operating Temperature | -40°C~125°C(TJ) |
| Package | Tape & Reel (TR); Cut Tape (CT); Digi-Reel® |
| Package / Case | 0201 (0603 Metric) |
| Supplier Device Package | 0201 FlipChip |
| Other | |
| Applications | General Purpose |
| Mfr | Littelfuse Inc. |
| Product Status | Obsolete |
| Series | SP1007, SPA® |
| Type | Zener |
