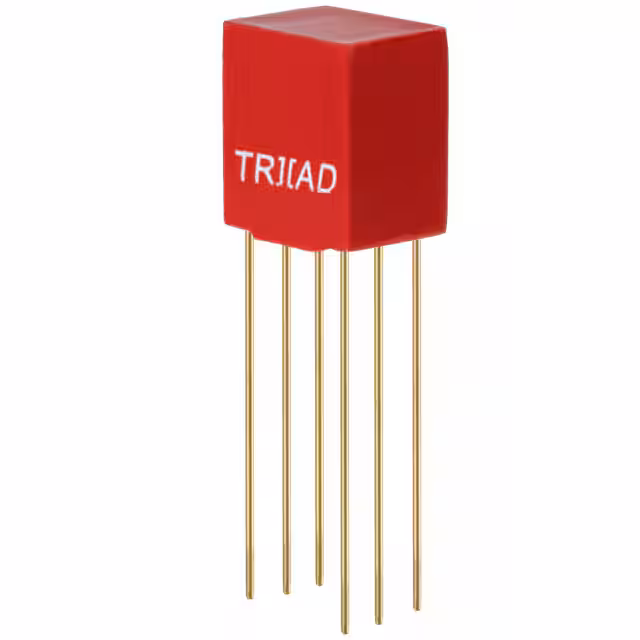

TRANSF 10K CT/500 CT AUDIO
All alternatives
View full reportTechnical parameters
| Power | |
|---|---|
| Power Level | 50mW |
| Voltage - Isolation | 1000VRMS @ 1 Second |
| AC and DC characteristics | |
| Frequency Range | 300Hz ~ 100kHz |
| Frequency Response | ±2dB |
| Impedance - Primary (Ohms) | 10kCT |
| Impedance - Secondary (Ohms) | 500CT |
| Environment and package | |
| Height - Seated (Max) | 0.465" (11.80mm) |
| Mounting Type | Through Hole |
| Operating Temperature | -40°C~85°C |
| Package | Bulk |
| Size / Dimension | 0.410" L x 0.310" W (10.41mm x 7.87mm) |
| Other | |
| Approval Agency | - |
| DC Resistance (DCR) - Primary | 1.05kOhm |
| DC Resistance (DCR) - Secondary | 80Ohm |
| Insertion Loss | - |
| Mfr | Triad Magnetics |
| Product Status | Active |
| Return Loss | - |
| Series | Red-Spec |
| Termination Style | PC Pin |
| Transformer Type | Audio Coupling |
| Turns Ratio - Primary:Secondary | 4.47:1 |
| Weight | - |
