SP-292-MM-24
Maury MicrowaveUnited States

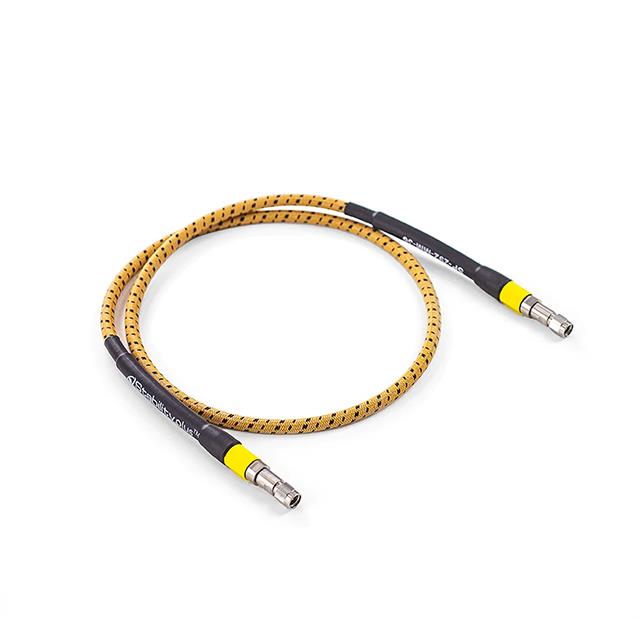

SP-292-MM-24

Coaxial Cables (RF)

2.92mm Male to 2.92mm Male Stabi

See alternativesAsk AI FAE

All alternatives

View full report

Technical parameters

AC and DC characteristics
Cable Impedance50 Ohms
Connector Impedance50 Ohms
Frequency - Max40 GHz
Overall Impedance50 Ohms
Environment and package
1st Connector Mounting TypeFree Hanging (In-Line)
2nd Connector Mounting TypeFree Hanging (In-Line)
Other
1st Connector2.92mm Plug
1st Contact GenderMale
2nd Connector2.92mm Plug
2nd Contact GenderMale
FeaturesArmored Cable, Color Coded, Phase Stable, Ruggedized, Shielded
Length24.00" (609.60mm)
ManufacturerMaury Microwave
PackagingRetail Package
Part StatusActive
SeriesStabilityPlus
Style2.92mm to 2.92mm

Documents

No documents are linked to this part yet.
