Texas InstrumentsUnited States

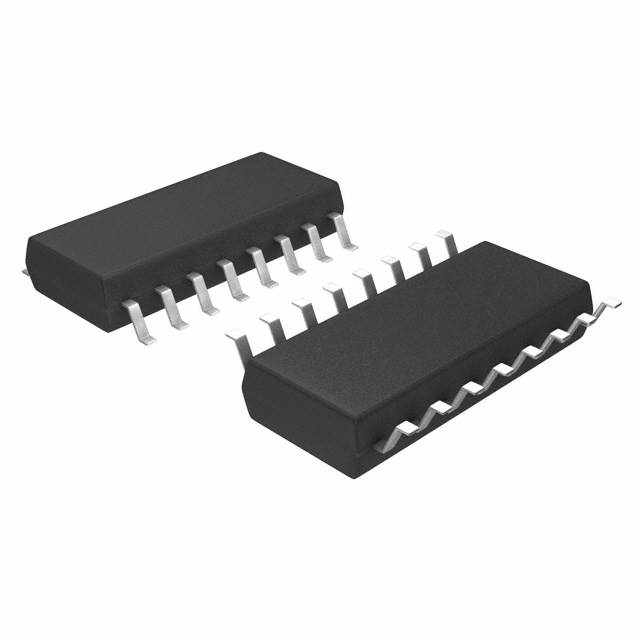

TRANS 7NPN DARL 100V 0.5A 16SO
All alternatives
View full reportTechnical parameters
| Power | |
|---|---|
| Current - Collector Cutoff (Max) | - |
| Current - Collector (Ic) (Max) | 500mA |
| Power - Max | - |
| Voltage - Collector Emitter Breakdown (Max) | 100V |
| AC and DC characteristics | |
| DC Current Gain (hFE) (Min) @ Ic, Vce | - |
| Frequency - Transition | - |
| Environment and package | |
| Mounting Type | Surface Mount |
| Operating Temperature | 150°C(TJ) |
| Package | Tape & Reel (TR); Cut Tape (CT); Digi-Reel® |
| Package / Case | 16-SOIC (0.209", 5.30mm Width) |
| Supplier Device Package | 16-SO |
| Other | |
| Base Product Number | 75468 |
| Mfr | Texas Instruments |
| Product Status | Active |
| Series | Automotive, AEC-Q100 |
| Transistor Type | 7 NPN Darlington |
| Vce Saturation (Max) @ Ib, Ic | 1.6V @ 500µA, 350mA |
