Texas InstrumentsUnited States

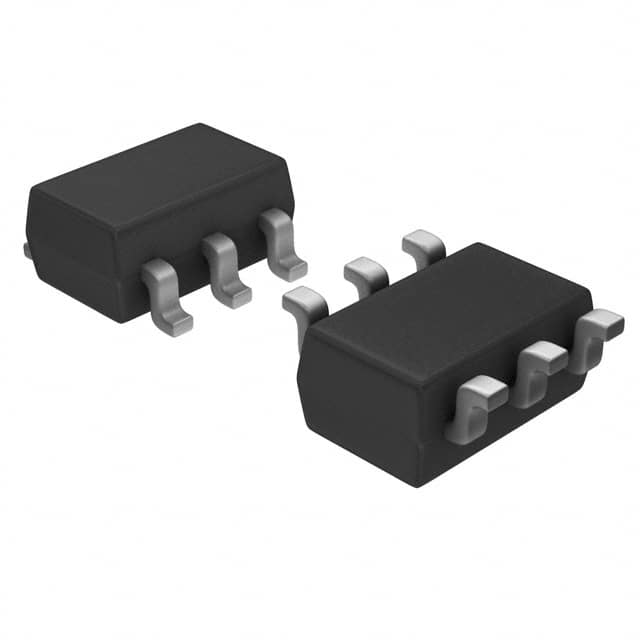

IC INVERTER 2CH 2-INP SOT23-6
All alternatives
View full reportTechnical parameters
Key specs
Logic typeInverter
Elements2
Inputs2
Supply voltage1.65 ~ 5.5 V
Propagation delay4.3 nsMax · 5V
| Power | |
|---|---|
| Current - Output High, Low | 32mA, 32mA |
| Current - Quiescent (Max) | 10 µA |
| Voltage - Supply | 1.65V ~ 5.5V |
| AC and DC characteristics | |
| Max Propagation Delay @ V, Max CL | 4.3ns @ 5V, 50pF |
| Environment and package | |
| Mounting Type | Surface Mount |
| Operating Temperature | -40°C~125°C |
| Package | Tape & Reel (TR); Cut Tape (CT); Digi-Reel® |
| Package / Case | SOT-23-6 |
| Supplier Device Package | SOT-23-6 |
| Other | |
| Base Product Number | 74LVC2G14 |
| Features | Schmitt Trigger |
| Input Logic Level - High | 1.4V ~ 3.7V |
| Input Logic Level - Low | 0.3V ~ 1.4V |
| Logic Type | Inverter |
| Mfr | Texas Instruments |
| Number of Circuits | 2 |
| Number of Inputs | 2 |
| Product Status | Active |
| Series | 74LVC |
