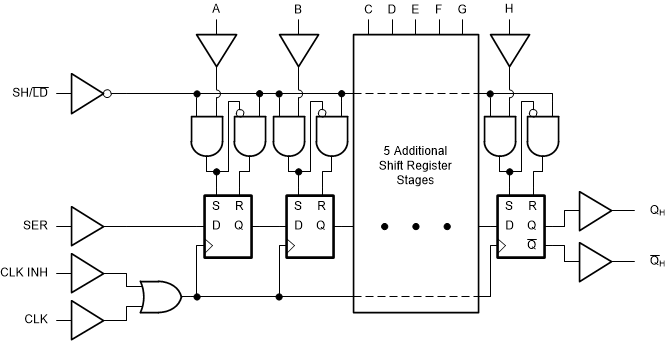

The SN74LVC165A contains one 8-bit parallel-load shift register. Data is loaded asynchronously using the shift or load (SH/LD) select pin. The device includes a serial (SER) input to allow for daisy chaining, and a standard (QH) and inverted (QH) output.
All alternatives
View full reportTechnical parameters
| Environment and package | |
|---|---|
| Operating temperature range (°C) | -40 to 125 |
| Other | |
| Features | Over-voltage tolerant inputs, Partial power down (Ioff) |
| Input type | CMOS |
| IOH (max) (mA) | -24 |
| IOL (max) (mA) | 24 |
| Output type | Push-Pull |
| Rating | Catalog |
| Technology family | LVC |
