Skyworks Solutions Inc.United States
Hyperabrupt Junction Tuning Varactor
All alternatives
View full reportTechnical parameters
| Power | |
|---|---|
| Vr Reverse Breakdown Voltage Ir = 10 µA (V) Min. | 15 |
| Environment and package | |

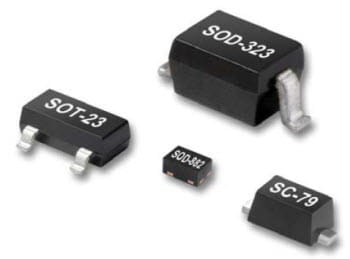

| Package Type | SC-70, SC-79, SOD-323, SOT-23 |
| Other | |
| Capacitance Ratio Range (V) | 0.3 to 4.7 |
| Ct Total Capacitance 3 Vr=1 V (pF) Typ. | 28.09 |
| Ct Total Capacitance 3 Vr=4 V (pF) Typ. | 3.95 |
| Ct Total Capacitance 3 Vr=8 V (pF) Typ. | 2.79 |
| Rs Series Resistance Max 2 (Ω) | 1.6 |
| Total Capacitance Ratio Min. 1 | 11 |
