Littelfuse Inc.United States

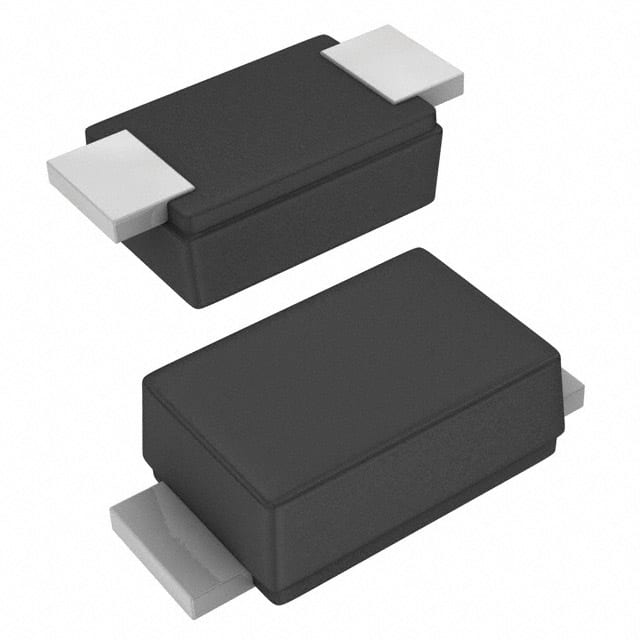

TVS DIODE 8VWM 13.6VC SOD123F
All alternatives
View full reportTechnical parameters
Key specs
Reverse standoff voltage8 V
Breakdown voltage8.89 V
Clamping voltage13.6 VMax
Peak pulse power200 W
PolarityUnidirectional
| Power | |
|---|---|
| Current - Peak Pulse (10/1000µs) | 14.7A |
| Power Line Protection | No |
| Power - Peak Pulse | 200W |
| Unidirectional Channels | 1 |
| Voltage - Breakdown (Min) | 8.89V |
| Voltage - Clamping (Max) @ Ipp | 13.6V |
| Voltage - Reverse Standoff (Typ) | 8V |
| AC and DC characteristics | |
| Capacitance @ Frequency | - |
| Environment and package | |
| Mounting Type | Surface Mount |
| Operating Temperature | -55°C~150°C(TJ) |
| Package | Tape & Reel (TR); Cut Tape (CT); Digi-Reel® |
| Package / Case | SOD-123F |
| Supplier Device Package | SOD-123F |
| Other | |
| Applications | General Purpose |
| Mfr | Littelfuse Inc. |
| Product Status | Active |
| Series | SMF |
| Type | Zener |
Documents
No documents are linked to this part yet.
