Taiwan Semiconductor CorporationTaiwan, China

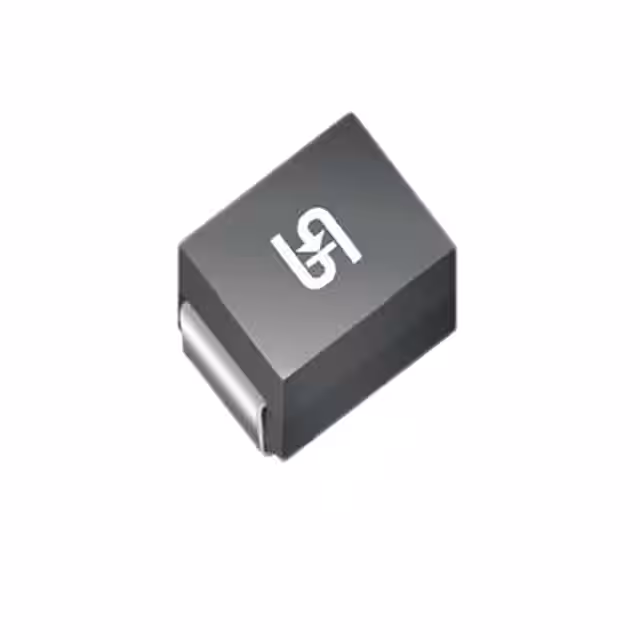

TVS DIODE 10VWM 17VC DO214AB
All alternatives
View full reportTechnical parameters
Key specs
Reverse standoff voltage10 V
Breakdown voltage11.1 V
Clamping voltage17 VMax
Peak pulse power3 kW
PolarityUnidirectional
| Power | |
|---|---|
| Current - Peak Pulse (10/1000µs) | 176.5A |
| Power Line Protection | No |
| Power - Peak Pulse | 3000W (3kW) |
| Unidirectional Channels | 1 |
| Voltage - Breakdown (Min) | 11.1V |
| Voltage - Clamping (Max) @ Ipp | 17V |
| Voltage - Reverse Standoff (Typ) | 10V |
| AC and DC characteristics | |
| Capacitance @ Frequency | - |
| Environment and package | |
| Mounting Type | Surface Mount |
| Operating Temperature | -55°C~150°C(TJ) |
| Package | Tape & Reel (TR) |
| Package / Case | DO-214AB, SMC |
| Supplier Device Package | DO-214AB (SMC) |
| Other | |
| Applications | Telecom |
| Base Product Number | SMDJ10 |
| Mfr | Taiwan Semiconductor Corporation |
| Product Status | Active |
| Series | SMDJ |
| Type | Zener |
