Littelfuse Inc.United States

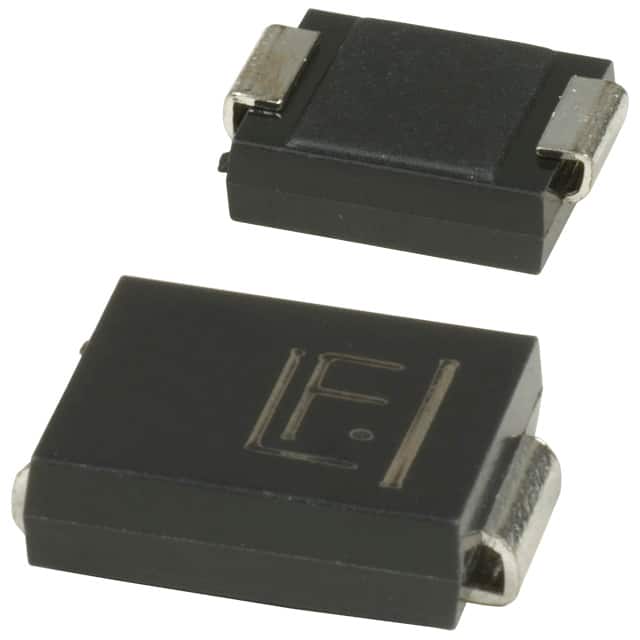

TVS DIODE 100VWM 170.1VC DO214AB
All alternatives
View full reportTechnical parameters
Key specs
Reverse standoff voltage100 V
Breakdown voltage105.3 V
Clamping voltage170.1 VMax
Peak pulse power3 kW
PolarityBidirectional
| Power | |
|---|---|
| Bidirectional Channels | 1 |
| Current - Peak Pulse (10/1000µs) | 18.5A |
| Power Line Protection | No |
| Power - Peak Pulse | 3000W (3kW) |
| Voltage - Breakdown (Min) | 105.3V |
| Voltage - Clamping (Max) @ Ipp | 170.1V |
| Voltage - Reverse Standoff (Typ) | 100V |
| AC and DC characteristics | |
| Capacitance @ Frequency | - |
| Environment and package | |
| Mounting Type | Surface Mount |
| Operating Temperature | -65°C~150°C(TJ) |
| Package | Tape & Reel (TR) |
| Package / Case | DO-214AB, SMC |
| Supplier Device Package | DO-214AB (SMCJ) |
| Other | |
| Applications | General Purpose |
| Mfr | Littelfuse Inc. |
| Product Status | Obsolete |
| Series | SMDJ |
| Type | Zener |
