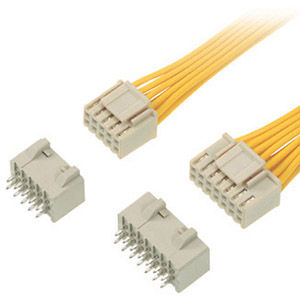

An outer lock design improves the housing and wafer engaging and disengaging workability. ...

All alternatives

Pitch2.54 mm

Power
Rated Current	3A
Rated Voltage	AC.DC 250V
Withstand Voltage	AC1000V/1min
Environment and package
Mounting Style	DIP
Temperature Range	-40～+85℃
Wire Size	AWG #22～ #28
Other
725416-2MAC	#22 ～ #28 \| 0.88 ～ 1.7mm \| TJS-24800 \| –
725416-7AC	#22 ～ #28 \| 0.88 ～ 1.7mm \| TJS-24800A \| –
Applicable P.C.B. Hole dia.	1.0mm
Applicable P.C.B. Thickness	1.2～1.6mm
for Crimping Machine	for Strip Crimper
Insulation Resistance	1000MΩover
Pitch	2.54mm
Pitch (mm)	2.54
Poles	Dual:10～40P (Even number)
Terminal No.	Wire Size \| Dia of Insulation \| Applicator
