Littelfuse Inc.United States

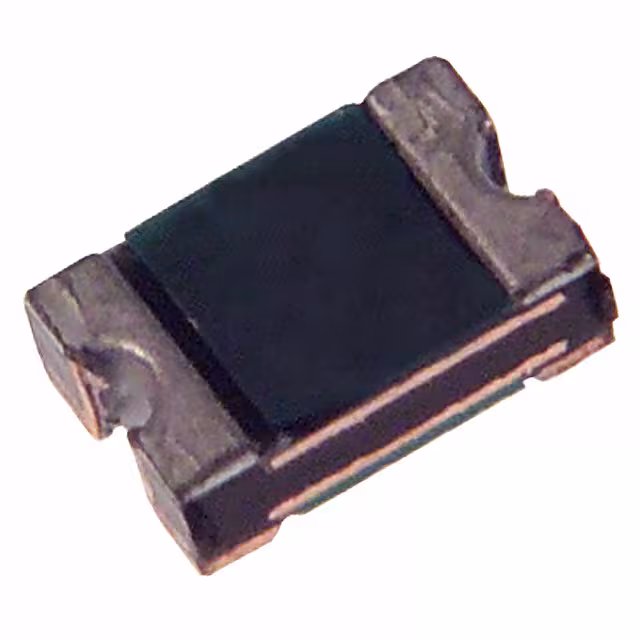

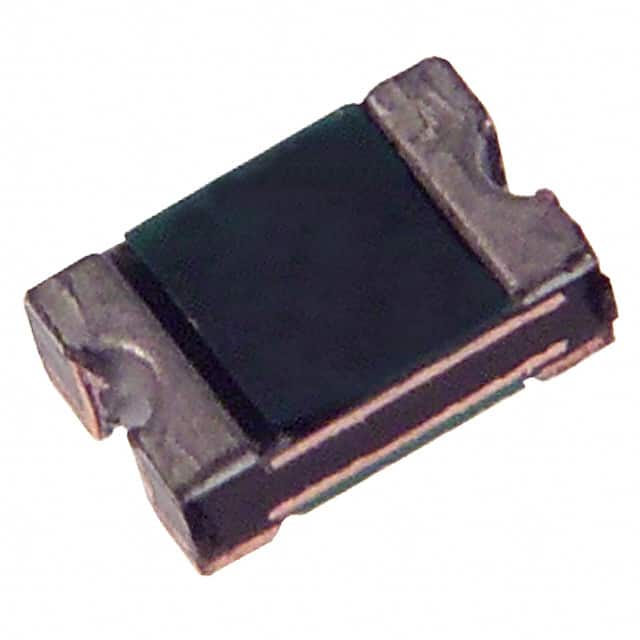

PTC RESET FUSE 6V 350MA 0805
All alternatives
View full reportTechnical parameters
| Power | |
|---|---|
| Current - Hold (Ih) (Max) | 350 mA |
| Current - Max | 40 A |
| Current - Trip (It) | 750 mA |
| Voltage - Max | 6V |
| Environment and package | |
| Height - Seated (Max) | - |
| Mounting Type | Surface Mount |
| Operating Temperature | -40°C~85°C |
| Package | Tape & Reel (TR); Cut Tape (CT) |
| Package / Case | 0805 (2012 Metric), Concave |
| Size / Dimension | 0.083" L x 0.053" W (2.10mm x 1.35mm) |
| Other | |
| Approval Agency | cURus, TUV |
| Lead Spacing | - |
| Mfr | Littelfuse Inc. |
| Product Status | Obsolete |
| Ratings | - |
| Resistance - Initial (Ri) (Min) | 250 mOhms |
| Resistance - Post Trip (R1) (Max) | 1.2 Ohms |
| Series | POLY-FUSE®, SMD0805 |
| Thickness (Max) | 0.024" (0.60mm) |
| Time to Trip | 100 ms |
| Type | Polymeric |
