MeritekUnited States

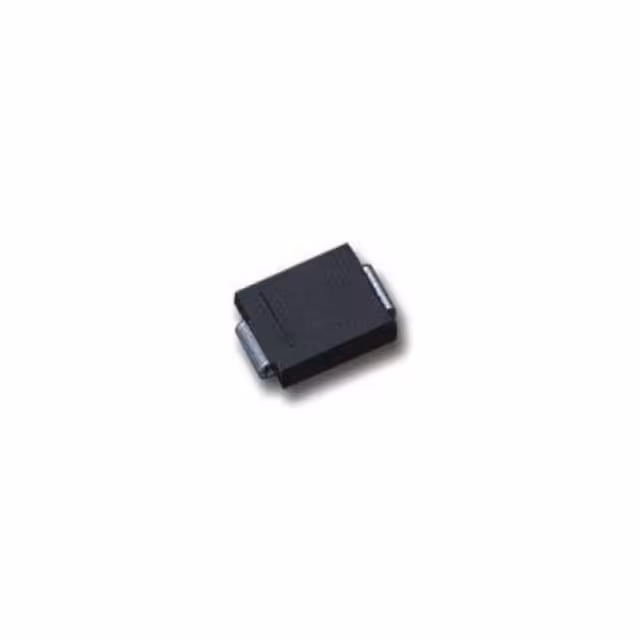

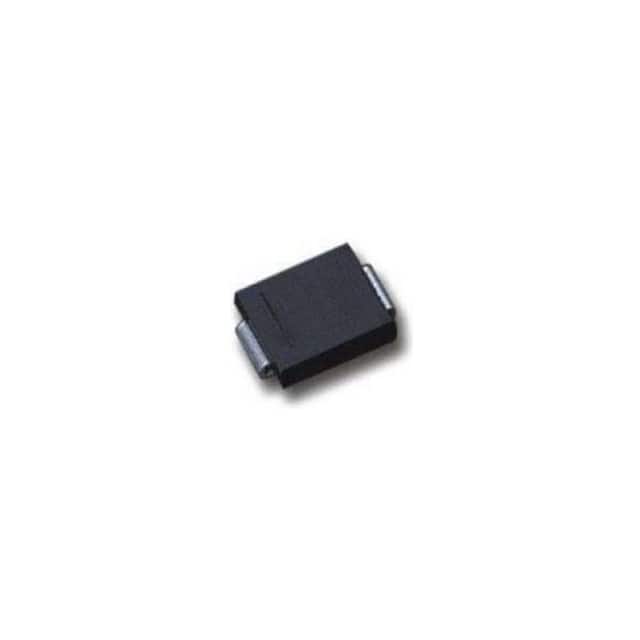

TVS DIODE 58VWM 93.6VC
All alternatives
View full reportTechnical parameters
Key specs
Reverse standoff voltage58 V
Breakdown voltage64.4 V
Clamping voltage93.6 VMax
Peak pulse power1.5 kW
PolarityBidirectional
| Power | |
|---|---|
| Bidirectional Channels | 1 |
| Current - Peak Pulse (10/1000µs) | 16.03A |
| Power Line Protection | - |
| Power - Peak Pulse | 1500W (1.5kW) |
| Voltage - Breakdown (Min) | 64.4V |
| Voltage - Clamping (Max) @ Ipp | 93.6V |
| Voltage - Reverse Standoff (Typ) | 58V |
| AC and DC characteristics | |
| Capacitance @ Frequency | - |
| Environment and package | |
| Mounting Type | Surface Mount |
| Operating Temperature | -55°C~150°C |
| Package | Tape & Reel (TR) |
| Package / Case | DO-214AB (SMC) |
| Supplier Device Package | - |
| Other | |
| Applications | General Purpose |
| Mfr | Meritek |
| Product Status | Active |
| Series | SMCJ |
| Type | Zener |
