Vishay General Semiconductor - Diodes DivisionUnited States

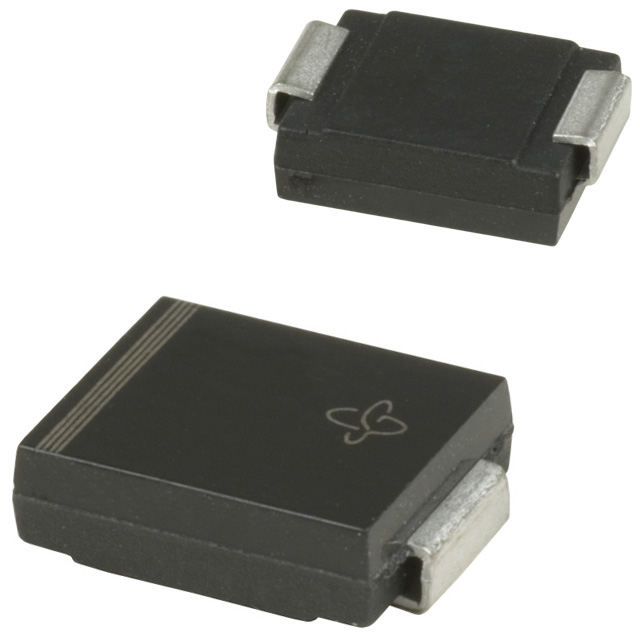

SMCJ45-E3/57T
TVS DiodesTVS DIODE 45VWM 80.3VC DO214AB
All alternatives
View full reportTechnical parameters
Key specs
Reverse standoff voltage45 V
Breakdown voltage50 V
Clamping voltage80.3 VMax
Peak pulse power1.5 kW
PolarityUnidirectional
| Power | |
|---|---|
| Current - Peak Pulse (10/1000µs) | 18.7A |
| Power Line Protection | No |
| Power - Peak Pulse | 1500W (1.5kW) |
| Unidirectional Channels | 1 |
| Voltage - Breakdown (Min) | 50V |
| Voltage - Clamping (Max) @ Ipp | 80.3V |
| Voltage - Reverse Standoff (Typ) | 45V |
| AC and DC characteristics | |
| Capacitance @ Frequency | - |
| Environment and package | |
| Mounting Type | Surface Mount |
| Operating Temperature | -55°C ~ 150°C (TJ) |
| Package / Case | DO-214AB, SMC |
| Supplier Device Package | DO-214AB (SMCJ) |
| Other | |
| Applications | General Purpose |
| Base Product Number | SMCJ45 |
| Mfr | Vishay General Semiconductor - Diodes Division |
| Packaging | Tape & Reel (TR) |
| Part Status | Obsolete |
| Series | TransZorb® |
| Type | Zener |
