Littelfuse Inc.United States

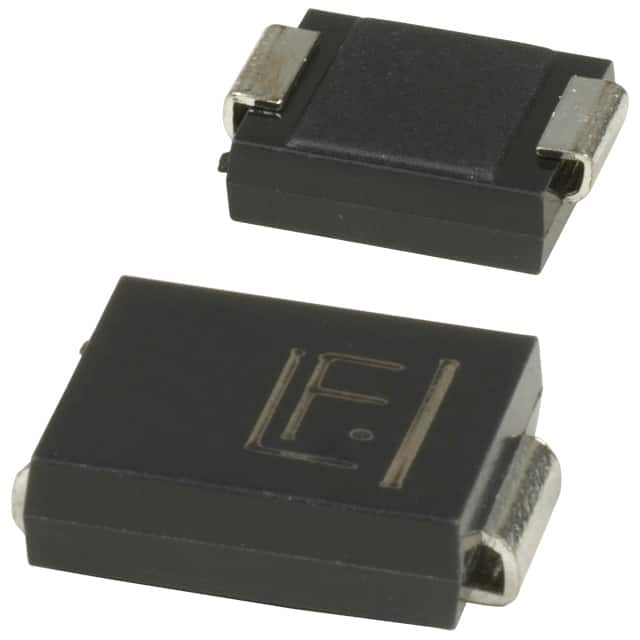

TVS DIODE 220VWM 356VC DO214AB
All alternatives
View full reportTechnical parameters
Key specs
Reverse standoff voltage220 V
Breakdown voltage246 V
Clamping voltage356 VMax
Peak pulse power1.5 kW
PolarityUnidirectional
| Power | |
|---|---|
| Current - Peak Pulse (10/1000µs) | 4.2A |
| Power Line Protection | No |
| Power - Peak Pulse | 1500W (1.5kW) |
| Unidirectional Channels | 1 |
| Voltage - Breakdown (Min) | 246V |
| Voltage - Clamping (Max) @ Ipp | 356V |
| Voltage - Reverse Standoff (Typ) | 220V |
| AC and DC characteristics | |
| Capacitance @ Frequency | - |
| Environment and package | |
| Mounting Type | Surface Mount |
| Operating Temperature | -55°C~150°C(TJ) |
| Package | Tape & Reel (TR); Cut Tape (CT); Digi-Reel® |

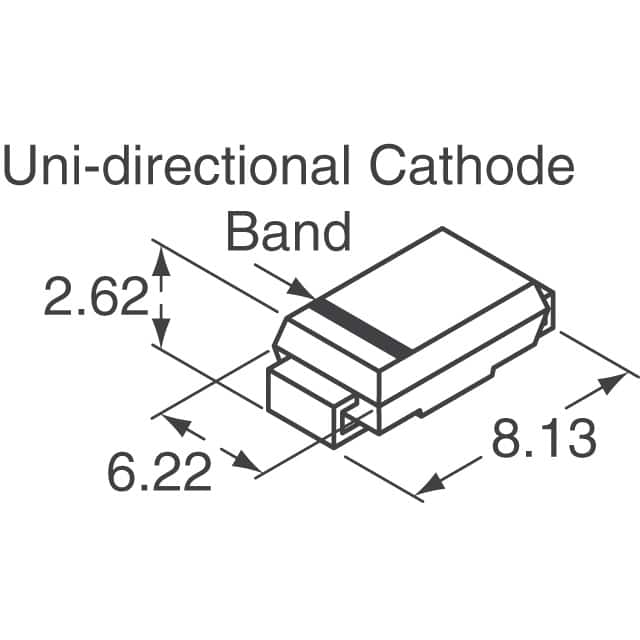

| Package / Case | DO-214AB, SMC |
| Supplier Device Package | DO-214AB (SMCJ) |
| Other | |
| Applications | General Purpose |
| Mfr | Littelfuse Inc. |
| Product Status | Active |
| Series | SMCJ |
| Type | Zener |
