Vishay General Semiconductor - Diodes DivisionUnited States

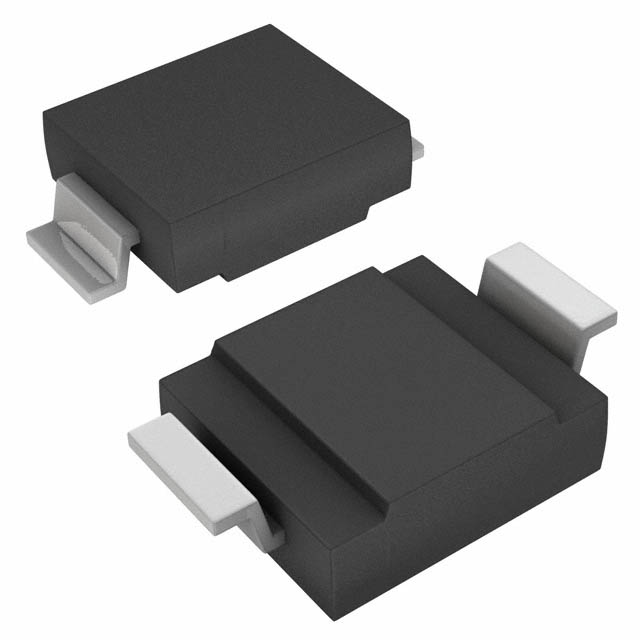

SMCG6.5CA-M3/57T
TVS DiodesTVS DIODE 6.5VWM 11.2VC DO215AB
All alternatives
View full reportTechnical parameters
Key specs
Reverse standoff voltage6.5 V
Breakdown voltage7.22 V
Clamping voltage11.2 VMax
Peak pulse power1.5 kW
PolarityBidirectional
| Power | |
|---|---|
| Bidirectional Channels | 1 |
| Current - Peak Pulse (10/1000µs) | 133.9A |
| Power Line Protection | No |
| Power - Peak Pulse | 1500W (1.5kW) |
| Voltage - Breakdown (Min) | 7.22V |
| Voltage - Clamping (Max) @ Ipp | 11.2V |
| Voltage - Reverse Standoff (Typ) | 6.5V |
| AC and DC characteristics | |
| Capacitance @ Frequency | - |
| Environment and package | |
| Mounting Type | Surface Mount |
| Operating Temperature | -55°C ~ 150°C (TJ) |
| Package / Case | DO-215AB, SMC Gull Wing |
| Supplier Device Package | DO-214AB (SMCG) |
| Other | |
| Applications | General Purpose |
| Base Product Number | SMCG6.5 |
| Mfr | Vishay General Semiconductor - Diodes Division |
| Packaging | Tape & Reel (TR) |
| Part Status | Active |
| Series | TransZorb® |
| Type | Zener |
