Hottech(合科泰)China
An electronic part for protection, which can protect the electrical equipment from the voltage spike introduced by the conductor
All alternatives
View full reportTechnical parameters
| Power | |
|---|---|
| Breakdown voltage(MAX) | 23.3 |
| Breakdown voltage(MIN) | 21.1 |
| Clamping voltage | 30.8 |
| Peak pulse current | 19.49 |
| Peak pulse power | 600 |
| Power Dissipation | 5 |
| Reverse leakage current | 1 |
| Working Peak Reverse Voltage | 19 |
| Environment and package | |
| Package | SMB(DO-214AA) |
| Other | |
| Datasheet | 双向 |

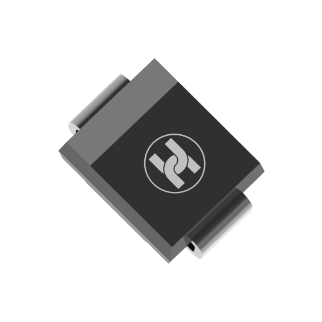

| Hottech Type | SMBJ19CA |
| Marking | BB |
