Microsemi CorporationUnited States

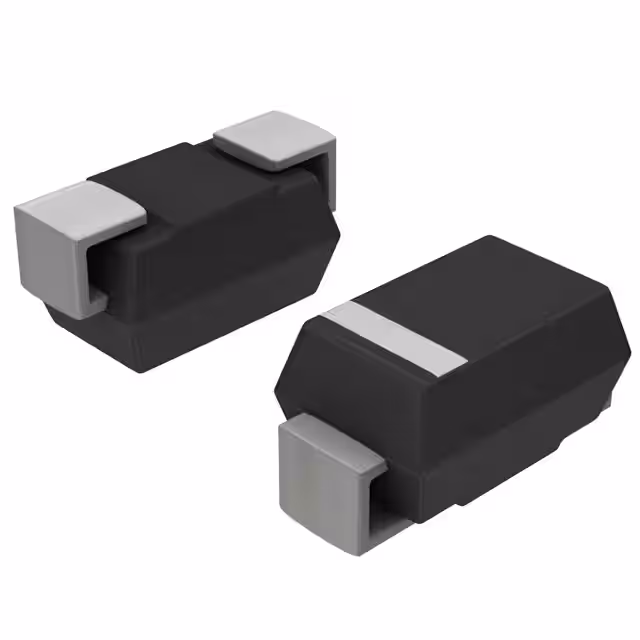

TVS DIODE 15VWM 24.4VC SMBJ
All alternatives
View full reportTechnical parameters
Key specs
Reverse standoff voltage15 V
Breakdown voltage16.7 V
Clamping voltage24.4 VMax
Peak pulse power600 W
PolarityUnidirectional
| Power | |
|---|---|
| Current - Peak Pulse (10/1000µs) | 24A |
| Power Line Protection | No |
| Power - Peak Pulse | 600W |
| Unidirectional Channels | 1 |
| Voltage - Breakdown (Min) | 16.7V |
| Voltage - Clamping (Max) @ Ipp | 24.4V |
| Voltage - Reverse Standoff (Typ) | 15V |
| AC and DC characteristics | |
| Capacitance @ Frequency | - |
| Environment and package | |
| Mounting Type | Surface Mount |
| Operating Temperature | -65°C~150°C(TJ) |
| Package | Tape & Reel (TR) |
| Package / Case | DO-214AA, SMB |
| Supplier Device Package | SMBJ (DO-214AA) |
| Other | |
| Applications | General Purpose |
| Base Product Number | SMBJ15 |
| Mfr | Microsemi Corporation |
| Product Status | Active |
| Series | - |
| Type | Zener |
