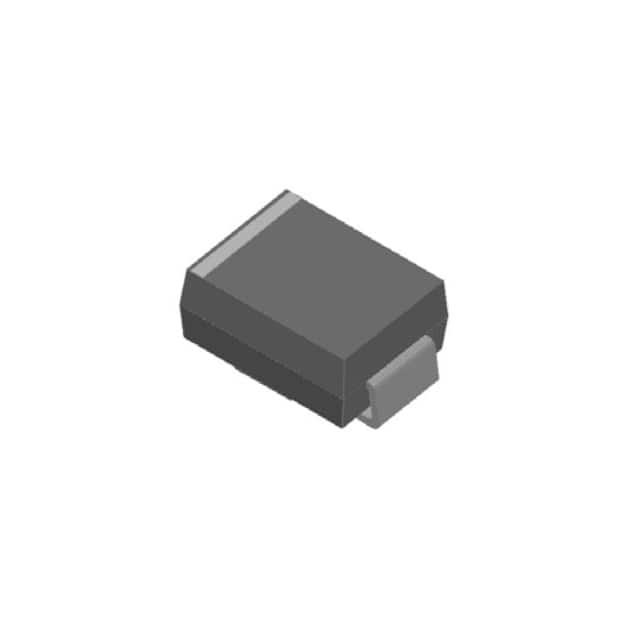

TVS DIODE 15VWM 24.4VC DO214AA
All alternatives
View full reportTechnical parameters
Key specs
Reverse standoff voltage15 V
Breakdown voltage16.7 V
Clamping voltage24.4 VMax
Peak pulse power600 W
PolarityUnidirectional
| Power | |
|---|---|
| Current - Peak Pulse (10/1000µs) | 24.59A |
| Power Line Protection | No |
| Power - Peak Pulse | 600W |
| Unidirectional Channels | 1 |
| Voltage - Breakdown (Min) | 16.7V |
| Voltage - Clamping (Max) @ Ipp | 24.4V |
| Voltage - Reverse Standoff (Typ) | 15V |
| AC and DC characteristics | |
| Capacitance @ Frequency | - |
| Environment and package | |
| Mounting Type | Surface Mount |
| Operating Temperature | -55°C~150°C(TJ) |
| Package | Tape & Reel (TR); Cut Tape (CT); Digi-Reel® |
| Package / Case | DO-214AA, SMB |
| Supplier Device Package | DO-214AA (SMB) |
| Other | |
| Applications | Telecom |
| Mfr | Yangzhou Yangjie Electronic Technology Co.,Ltd |
| Product Status | Active |
| Series | SMBJ |
| Type | Zener |
