Diodes IncorporatedUnited States
TVS DIODE 120VWM 193VC SMB
All alternatives
View full reportTechnical parameters
Key specs
Reverse standoff voltage120 V
Breakdown voltage133 V
Clamping voltage193 VMax
Peak pulse power600 W
PolarityBidirectional
| Power | |
|---|---|
| Bidirectional Channels | 1 |
| Current - Peak Pulse (10/1000µs) | 3.1A |
| Power Line Protection | No |
| Power - Peak Pulse | 600W |
| Voltage - Breakdown (Min) | 133V |
| Voltage - Clamping (Max) @ Ipp | 193V |
| Voltage - Reverse Standoff (Typ) | 120V |
| AC and DC characteristics | |
| Capacitance @ Frequency | - |
| Environment and package | |
| Mounting Type | Surface Mount |
| Operating Temperature | -55°C~150°C(TJ) |
| Package | Tape & Reel (TR) |

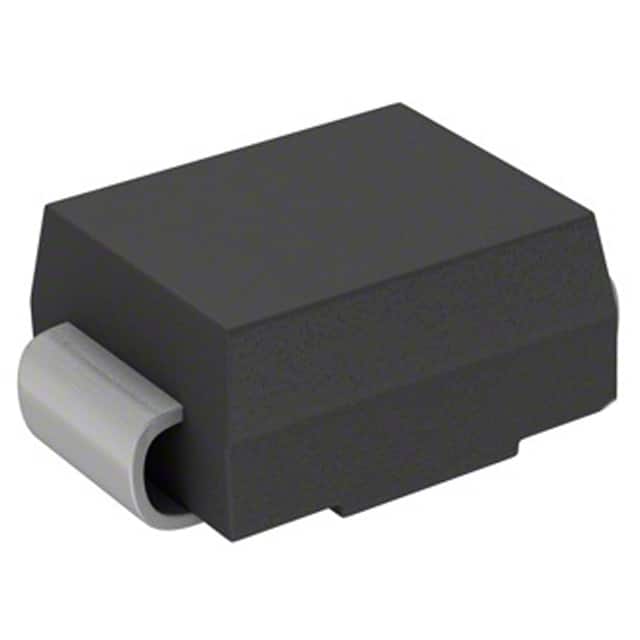

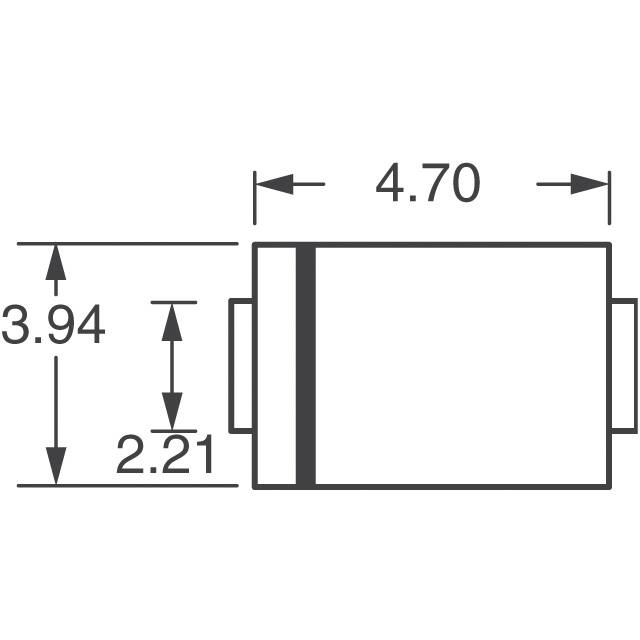

| Package / Case | DO-214AA, SMB |
| Supplier Device Package | SMB |
| Other | |
| Applications | General Purpose |
| Base Product Number | SMBJ120 |
| Mfr | Diodes Incorporated |
| Product Status | Active |
| Series | SMBJ |
| Type | Zener |
