View full reportTechnical parameters
| Power | |
|---|---|
| Ipp最大峰值脉冲电流 | 2.7A |
| Ipp-最大峰值脉冲电流 | 2.7A |
| Ir最大反向漏电流 | 5μA |
| IR-最大反向漏电流 | 1μA |
| VBR(min)-最小反向击穿电压 | 111V |
| VBR最小反向击穿电压 | 100V |
| Vc最大钳位电压 | 146V |
| VRWM反向峰值电压 | 90V |
| VRWM-反向工作峰值电压 | 90V |
| Environment and package | |

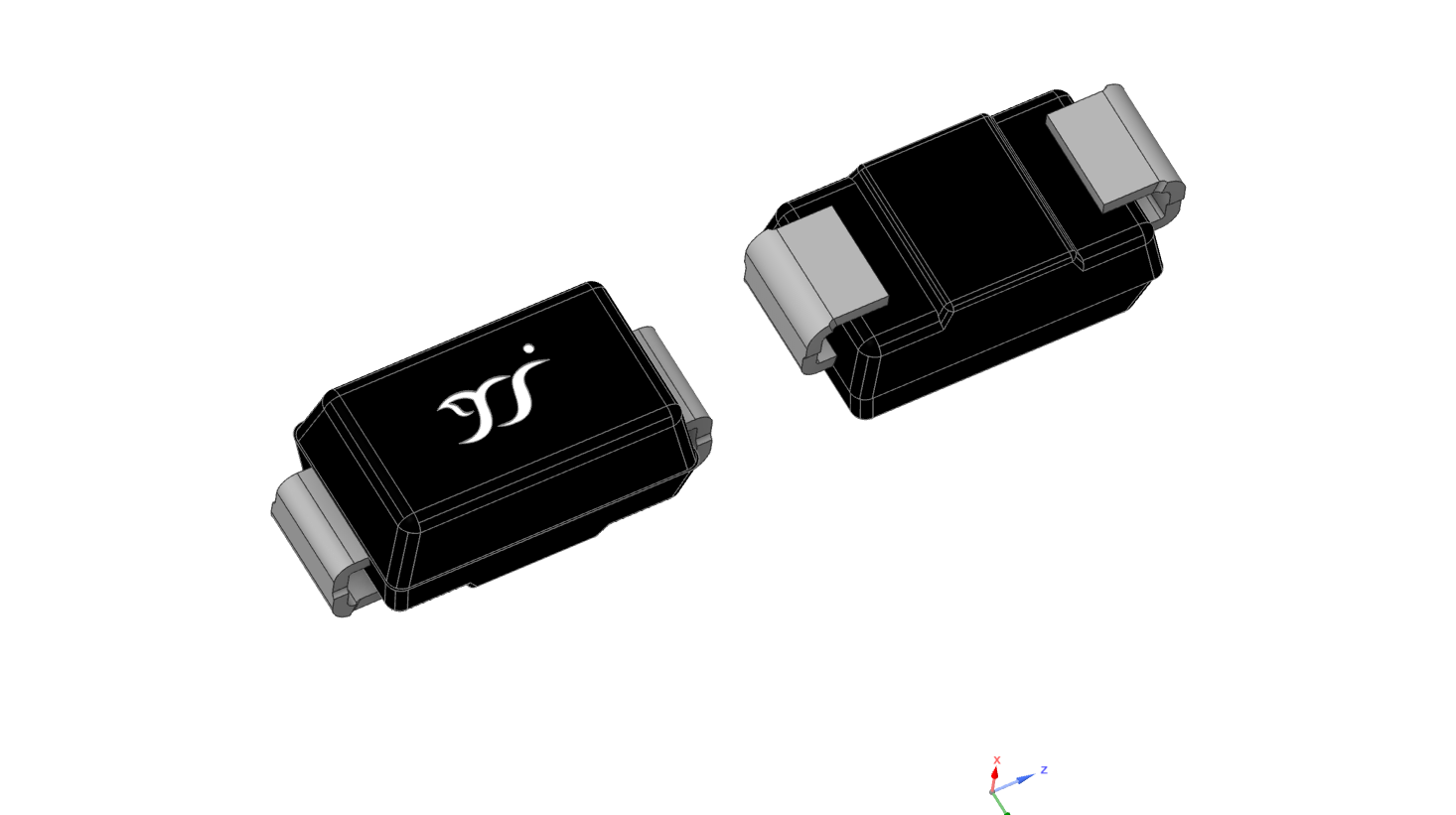

| 封装类型1 | SMA |
| Other | |
| Ppk最大峰值脉冲功率 | 400W |
| 引脚数量1 | 2 |
Documents
DatasheetDatasheet · 262.7 KB · 2026-09-22EnvironmentalEnvironmental · 4.4 MB · 2026-09-22EnvironmentalEnvironmental · 4.4 MB · 2026-09-22EnvironmentalEnvironmental · 1.5 MB · 2026-09-22EnvironmentalEnvironmental · 1.4 MB · 2026-09-22Package DrawingPackage Drawing · 329.6 KB · 2026-09-22
