Littelfuse Inc.United States

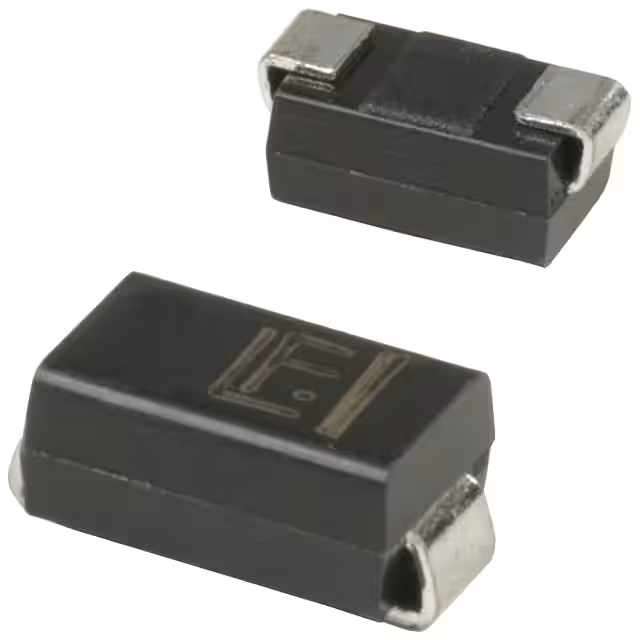

TVS DIODE 45VWM 76.34VC DO214AC
All alternatives
View full reportTechnical parameters
Key specs
Reverse standoff voltage45 V
Breakdown voltage47.39 V
Clamping voltage76.34 VMax
Peak pulse power400 W
PolarityUnidirectional
| Power | |
|---|---|
| Current - Peak Pulse (10/1000µs) | 5.5A |
| Power Line Protection | No |
| Power - Peak Pulse | 400W |
| Unidirectional Channels | 1 |
| Voltage - Breakdown (Min) | 47.39V |
| Voltage - Clamping (Max) @ Ipp | 76.34V |
| Voltage - Reverse Standoff (Typ) | 45V |
| AC and DC characteristics | |
| Capacitance @ Frequency | - |
| Environment and package | |
| Mounting Type | Surface Mount |
| Operating Temperature | -65°C~150°C(TJ) |
| Package | Tape & Reel (TR) |
| Package / Case | DO-214AC, SMA |
| Supplier Device Package | DO-214AC (SMA) |
| Other | |
| Applications | General Purpose |
| Mfr | Littelfuse Inc. |
| Product Status | Obsolete |
| Series | SMAJ |
| Type | Zener |
