Bourns Inc.United States

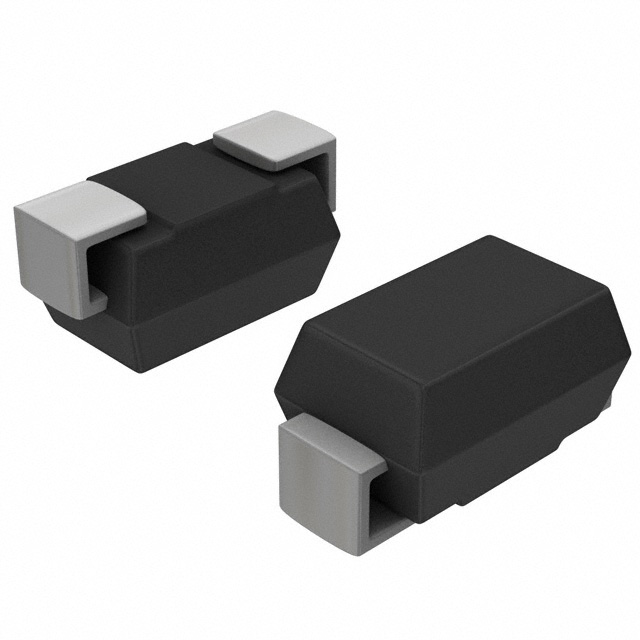

TVS DIODE 40VWM 64.5VC SMA
All alternatives
View full reportTechnical parameters
Key specs
Reverse standoff voltage40 V
Breakdown voltage44.4 V
Clamping voltage64.5 VMax
Peak pulse power400 W
PolarityBidirectional
| Power | |
|---|---|
| Bidirectional Channels | 1 |
| Current - Peak Pulse (10/1000µs) | 6.2A |
| Power Line Protection | No |
| Power - Peak Pulse | 400W |
| Voltage - Breakdown (Min) | 44.4V |
| Voltage - Clamping (Max) @ Ipp | 64.5V |
| Voltage - Reverse Standoff (Typ) | 40V |
| AC and DC characteristics | |
| Capacitance @ Frequency | - |
| Environment and package | |
| Mounting Type | Surface Mount |
| Operating Temperature | -55°C~150°C(TJ) |
| Package | Tape & Reel (TR); Cut Tape (CT); Digi-Reel® |

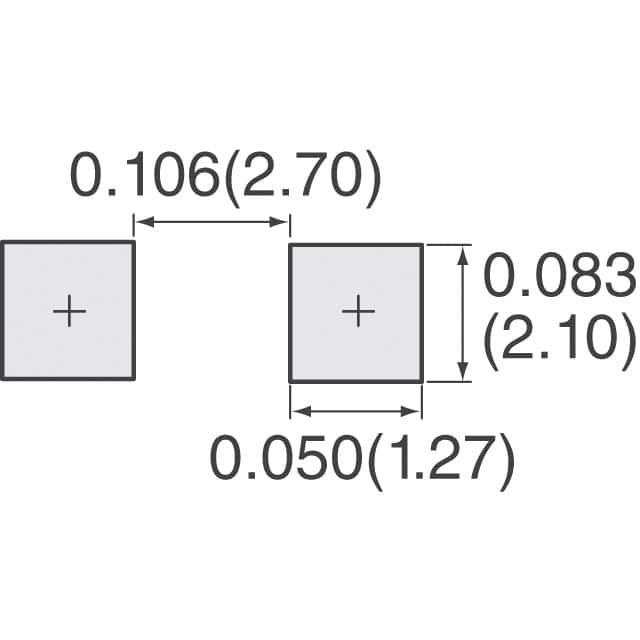

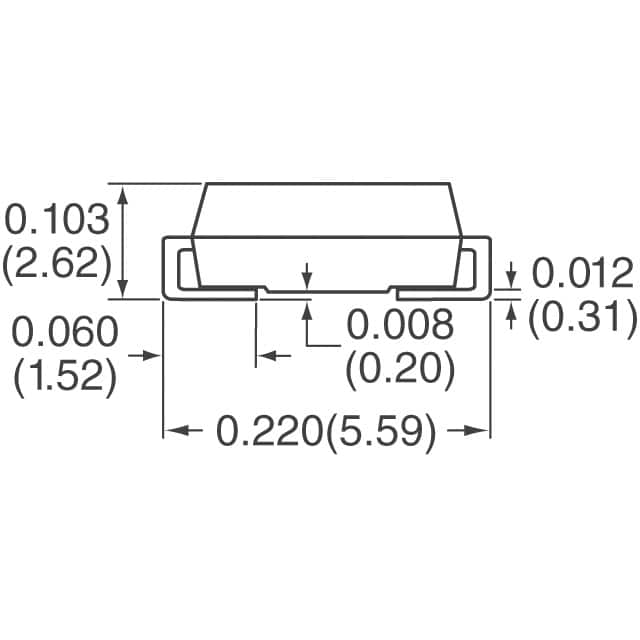

| Package / Case | DO-214AC, SMA |
| Supplier Device Package | DO-214AC (SMA) |
| Other | |
| Applications | General Purpose |
| Base Product Number | SMAJ40 |
| Mfr | Bourns Inc. |
| Product Status | Active |
| Series | SMAJ |
| Type | Zener |
