MDDGermany

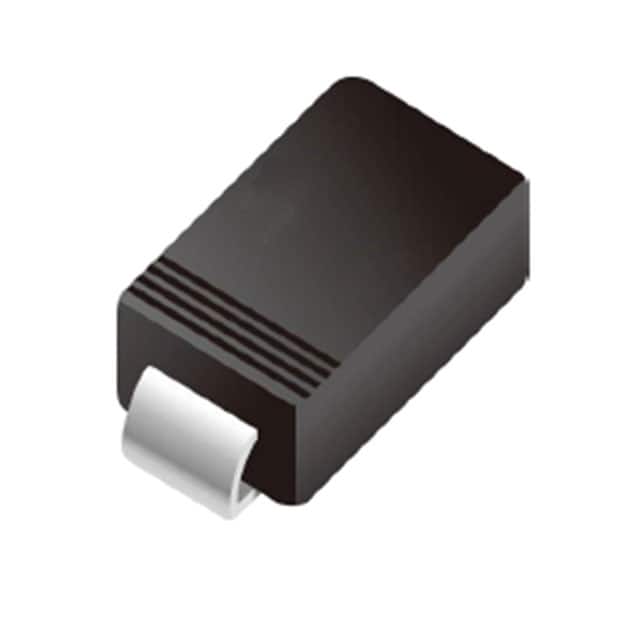

TVS DIODE 33VWM 53.3VC SMA
All alternatives
View full reportTechnical parameters
Key specs
Reverse standoff voltage33 V
Breakdown voltage36.7 V
Clamping voltage53.3 VMax
Peak pulse power400 W
PolarityBidirectional
| Power | |
|---|---|
| Bidirectional Channels | 1 |
| Current - Peak Pulse (10/1000µs) | 7.5A |
| Power Line Protection | No |
| Power - Peak Pulse | 400W |
| Voltage - Breakdown (Min) | 36.7V |
| Voltage - Clamping (Max) @ Ipp | 53.3V |
| Voltage - Reverse Standoff (Typ) | 33V |
| AC and DC characteristics | |
| Capacitance @ Frequency | - |
| Environment and package | |
| Mounting Type | Surface Mount |
| Operating Temperature | -50°C~150°C(TJ) |
| Package | Tape & Reel (TR) |
| Package / Case | DO-214AC, SMA |
| Other | |
| Applications | General Purpose |
| Mfr | MDD |
| Product Status | Active |
| Series | SMA |
| Type | Zener |
