Key specs
Reverse standoff voltage64 V
Breakdown voltage71.1 V
Clamping voltage103 VMax
Peak pulse power400 W
PolarityBidirectional
| Power | |
|---|---|
| Bidirectional Channels | 1 |
| Current - Peak Pulse (10/1000µs) | 3.9A |
| Power Line Protection | No |
| Power - Peak Pulse | 400W |
| Voltage - Breakdown (Min) | 71.1V |
| Voltage - Clamping (Max) @ Ipp | 103V |
| Voltage - Reverse Standoff (Typ) | 64V |
| AC and DC characteristics | |
| Capacitance @ Frequency | - |
| Environment and package | |
| Mounting Type | Surface Mount |
| Operating Temperature | -55°C ~ 175°C (TJ) |
| Package | Bulk |

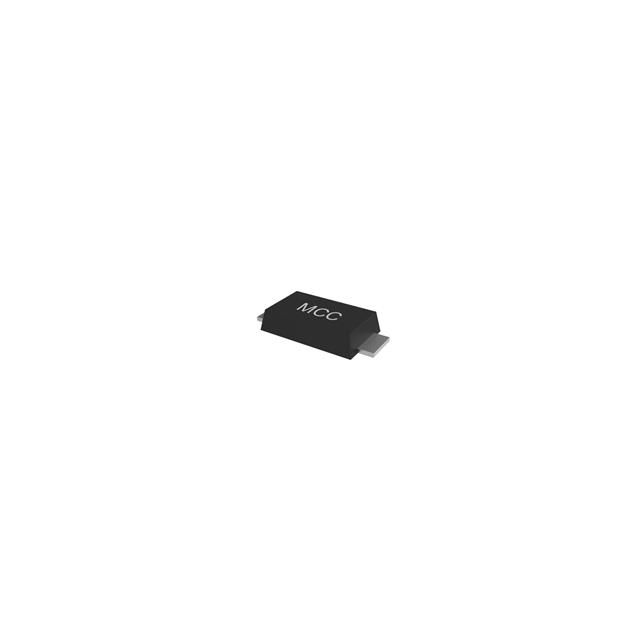

| Package / Case | DO-221AC, SMA Flat Leads |
| Supplier Device Package | DO-221AC (SMA-FL) |
| Other | |
| Applications | General Purpose |
| Base Product Number | SMAF64 |
| Mfr | Micro Commercial Co |
| Product Status | Active |
| Series | - |
| Type | Zener |
