View full reportTechnical parameters
| Environment and package | |
|---|---|

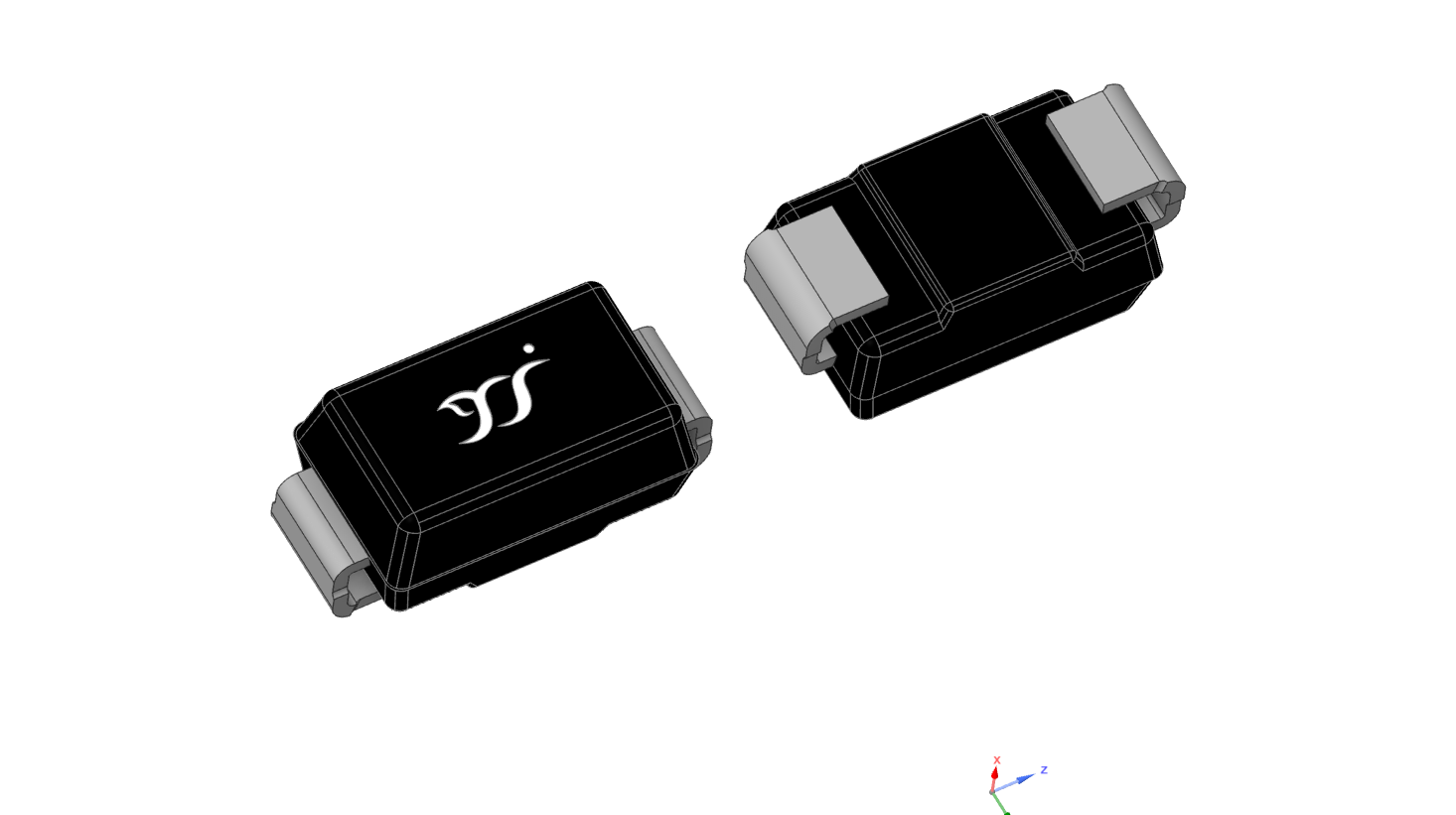

| Package | SMA |
| Other | |
| IPP(A) | 9.30 |
| IR@VRWM(μA) | 1 |
| PPPM（W） | 600 |
| Status | Active |
| Tj（℃） | -55～+150 |
| Type | Bi |
| VBR_Max(V) | 49.10 |
| VBR_Min(V) | 44.40 |
| VC@IPP(V) | 64.5 |
| VRWM(V) | 40 |
Documents
DatasheetDatasheet · 261.2 KB · 2026-09-23EnvironmentalEnvironmental · 4.4 MB · 2026-09-23EnvironmentalEnvironmental · 4.4 MB · 2026-09-23EnvironmentalEnvironmental · 1.5 MB · 2026-09-23EnvironmentalEnvironmental · 1.4 MB · 2026-09-23Package DrawingPackage Drawing · 329.6 KB · 2026-09-23
