View full reportTechnical parameters
| Environment and package | |
|---|---|

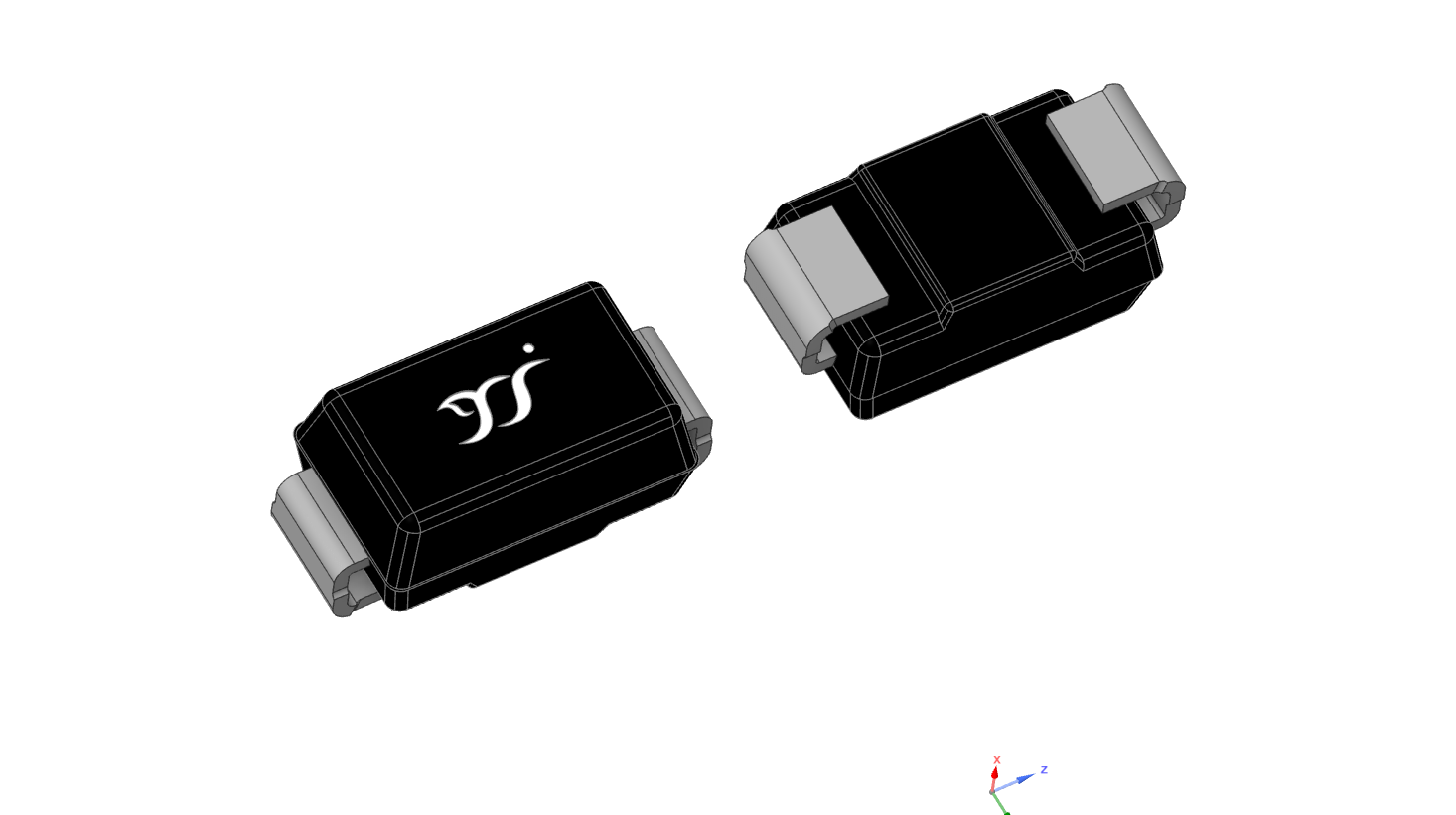

| Package | SMA |
| Other | |
| IPP(A) | 11.3 |
| IR@VRWM(μA) | 1 |
| PPk（W） | 600 |
| Status | Active |
| Tj（℃） | -55～+175 |
| Type | Bi |
| VBR _Max(V) | 40.6 |
| VBR _Min(V) | 36.7 |
| VC@IPP(V) | 53.3 |
| VRWM(V) | 33 |
Documents
DatasheetDatasheet · 296.5 KB · 2026-09-23EnvironmentalEnvironmental · 4.4 MB · 2026-09-23EnvironmentalEnvironmental · 4.4 MB · 2026-09-23EnvironmentalEnvironmental · 1.5 MB · 2026-09-23EnvironmentalEnvironmental · 1.4 MB · 2026-09-23Package DrawingPackage Drawing · 329.6 KB · 2026-09-23
