View full reportTechnical parameters
| Environment and package | |
|---|---|

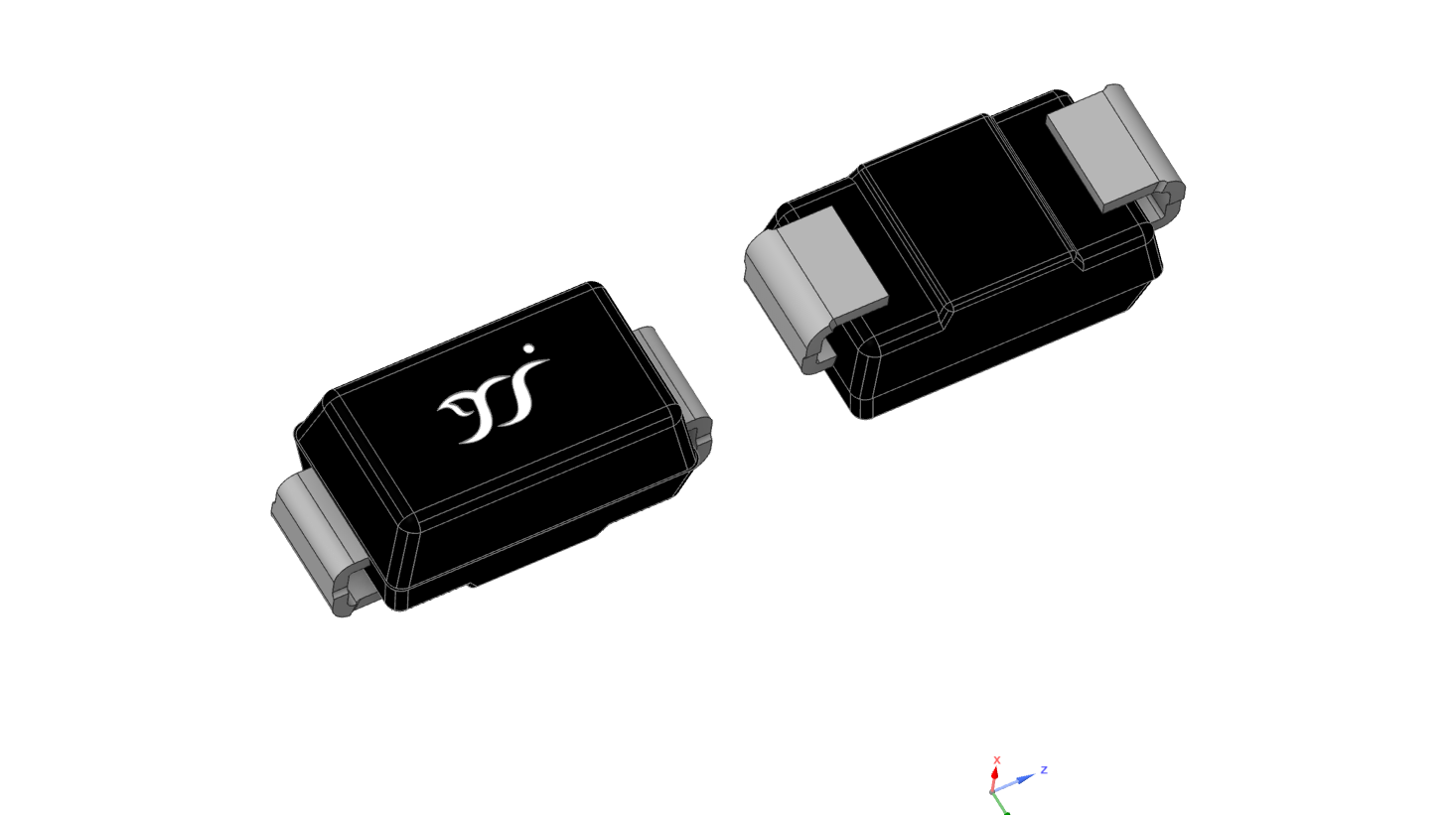

| Package | SMA |
| Other | |
| IPP(A) | 13.3 |
| IR@VRWM(μA) | 1 |
| PPk（W） | 600 |
| Status | Active |
| Tj（℃） | -55～+175 |
| Type | Bi |
| VBR _Max(V) | 34.4 |
| VBR _Min(V) | 31.1 |
| VC@IPP(V) | 45.4 |
| VRWM(V) | 28 |
