Nexperia USA Inc.Netherlands

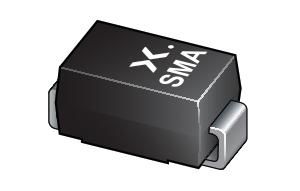

600 W Transient Voltage Suppressor
All alternatives
View full reportTechnical parameters
| Environment and package | |
|---|---|
| Halogen free | Yes |
| Package version | SOD1001-1 |
| RoHS | Compliant |
| Other | |
| Configuration | Unidirectional |
| IPPM @10/1000 µs [max] | 13.8 |
| IRM [max] | 1 |
| No of protected lines | 1 |
| PPPM @10/1000 µs [max] | 600 |
| Tj [max] | 150 |
| VBR [max] | 34.4 |
| VBR [min] | 31.1 |
| VCL @ IPPM 10/1000 µs [max] | 45.4 |
