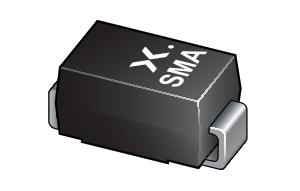

SMA6J16CA
Nexperia USA Inc.Netherlands

SMA6J16CA

ActiveElectrostatic and Surge Protection (TVS/ESD)

600 W Transient Voltage Suppressor

See alternativesAsk AI FAEDatasheet PDF

All alternatives

View full report

Technical parameters

Environment and package
Halogen freeYes
Package versionSOD1001-1
RoHSCompliant
Other
ConfigurationBidirectional
IPPM @10/1000 µs [max]23.1
IRM [max]1
No of protected lines1
PPPM @10/1000 µs [max]600
Tj [max]150
VBR [max]19.7
VBR [min]17.8
VCL @ IPPM 10/1000 µs [max]26

Documents

DatasheetDatasheet · 205.6 KB · 2026-09-23Package DrawingPackage Drawing · 189.7 KB · 2026-09-23Package DrawingPackage Drawing · 157.6 KB · 2026-09-23Application NoteApplication Note · 87.4 KB · 2026-09-23
