View full reportTechnical parameters
| Environment and package | |
|---|---|

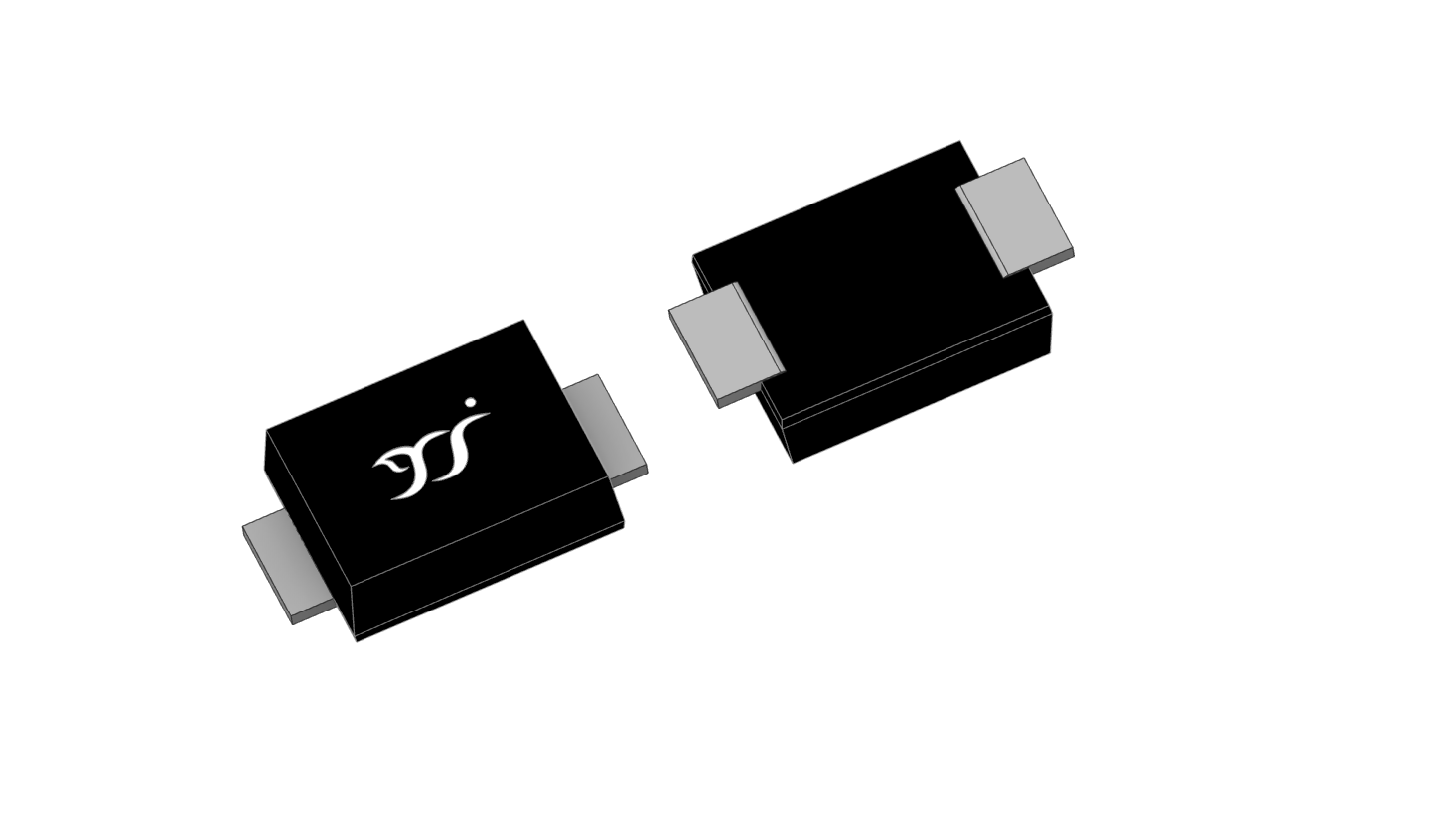

| Package | SMAF |
| Other | |
| IPP(A) | 30.15 |
| IR@VRWM(μA) | 5 |
| PPPM（W） | / |
| Status | Active |
| Tj（℃） | -55～+150 |
| Type | Uni |
| VBR_Max(V) | 14.70 |
| VBR_Min(V) | 13.30 |
| VC@IPP(V) | 19.9 |
| VRWM(V) | 12 |
Documents
DatasheetDatasheet · 1.1 MB · 2026-09-23EnvironmentalEnvironmental · 4.4 MB · 2026-09-23EnvironmentalEnvironmental · 4.4 MB · 2026-09-23EnvironmentalEnvironmental · 1.5 MB · 2026-09-23EnvironmentalEnvironmental · 1.4 MB · 2026-09-23Package DrawingPackage Drawing · 325.8 KB · 2026-09-23
