Vishay General Semiconductor - Diodes DivisionUnited States

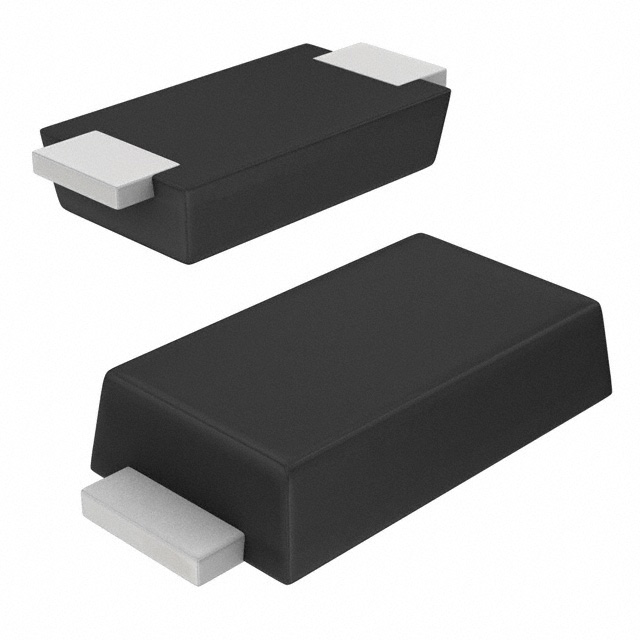

TVS DIODE 12VWM 23.5VC DO221AC
All alternatives
View full reportTechnical parameters
Key specs
Reverse standoff voltage12 V
Breakdown voltage13.3 V
Clamping voltage23.5 VMax
Peak pulse power4 kW
PolarityUnidirectional
| Power | |
|---|---|
| Current - Peak Pulse (10/1000µs) | 157A (8/20µs) |
| Power Line Protection | No |
| Power - Peak Pulse | 4000W (4kW) |
| Unidirectional Channels | 1 |
| Voltage - Breakdown (Min) | 13.3V |
| Voltage - Clamping (Max) @ Ipp | 23.5V |
| Voltage - Reverse Standoff (Typ) | 12V |
| AC and DC characteristics | |
| Capacitance @ Frequency | - |
| Environment and package | |
| Mounting Type | Surface Mount |
| Operating Temperature | -55°C~175°C(TJ) |
| Package | Tape & Reel (TR); Cut Tape (CT); Digi-Reel® |
| Package / Case | DO-221AC, SMA Flat Leads |
| Supplier Device Package | DO-221AC (SlimSMA) |
| Other | |
| Applications | General Purpose |
| Base Product Number | SMA6F12 |
| Mfr | Vishay General Semiconductor - Diodes Division |
| Product Status | Active |
| Series | TransZorb® |
| Type | Zener |
