SankenJapan

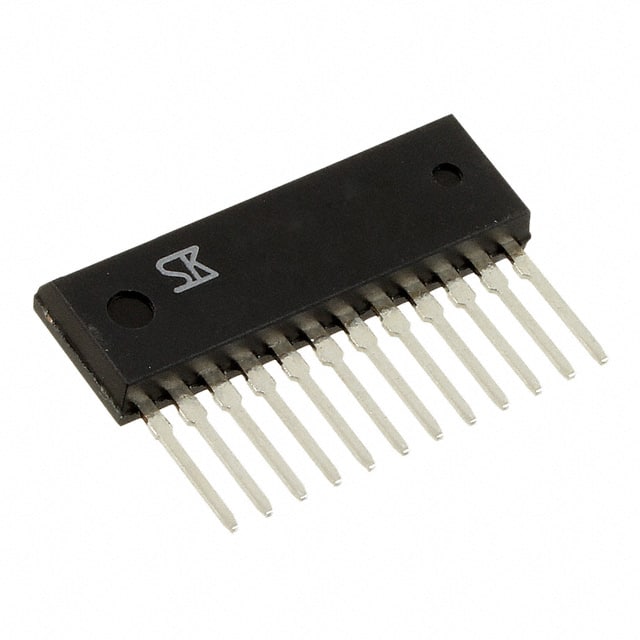

MOSFET 3N/3P-CH 60V 10A 12-SIP
All alternatives
View full reportTechnical parameters
| Power | |
|---|---|
| Current - Continuous Drain (Id) @ 25°C | 10A |
| Drain to Source Voltage (Vdss) | 60V |
| Power - Max | 4W |
| Environment and package | |
| Mounting Type | Through Hole |
| Operating Temperature | 150°C(TJ) |
| Package | Tube |
| Package / Case | 12-SIP |
| Supplier Device Package | 12-SIP |
| Other | |
| FET Feature | Standard |
| FET Type | 3 N and 3 P-Channel (3-Phase Bridge) |
| Gate Charge (Qg) (Max) @ Vgs | - |
| Input Capacitance (Ciss) (Max) @ Vds | 460pF @ 10V |
| Mfr | Sanken |
| Product Status | Obsolete |
| Rds On (Max) @ Id, Vgs | 140mOhm @ 5A, 4V |
| Series | - |
| Vgs(th) (Max) @ Id | 2V @ 250µA |
