SankenJapan

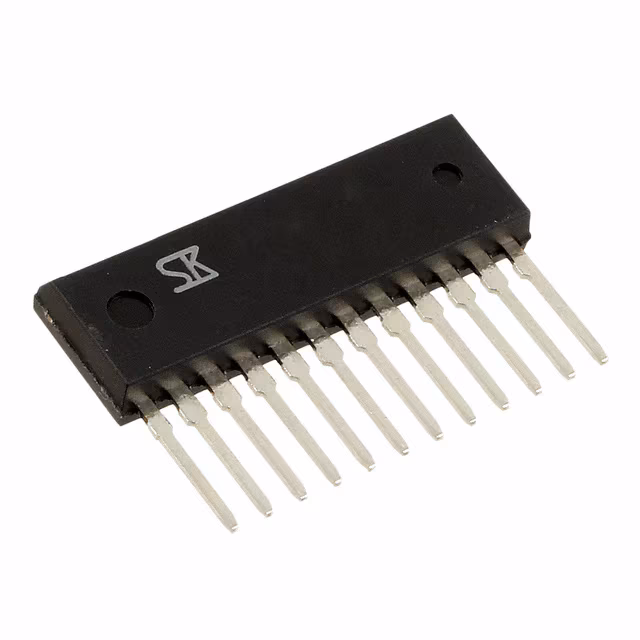

MOSFET 6N-CH 500V 5A 12-SIP
All alternatives
View full reportTechnical parameters
| Power | |
|---|---|
| Current - Continuous Drain (Id) @ 25°C | 5A |
| Drain to Source Voltage (Vdss) | 500V |
| Power - Max | 4W |
| Environment and package | |
| Mounting Type | Through Hole |
| Operating Temperature | 150°C(TJ) |
| Package | Tube |
| Package / Case | 12-SIP |
| Supplier Device Package | 12-SIP |
| Other | |
| FET Feature | Standard |
| FET Type | 6 N-Channel (3-Phase Bridge) |
| Gate Charge (Qg) (Max) @ Vgs | - |
| Input Capacitance (Ciss) (Max) @ Vds | 770pF @ 10V |
| Mfr | Sanken |
| Product Status | Active |
| Rds On (Max) @ Id, Vgs | 1.4Ohm @ 2.5A, 10V |
| Series | - |
| Vgs(th) (Max) @ Id | 4V @ 1mA |
