SankenJapan

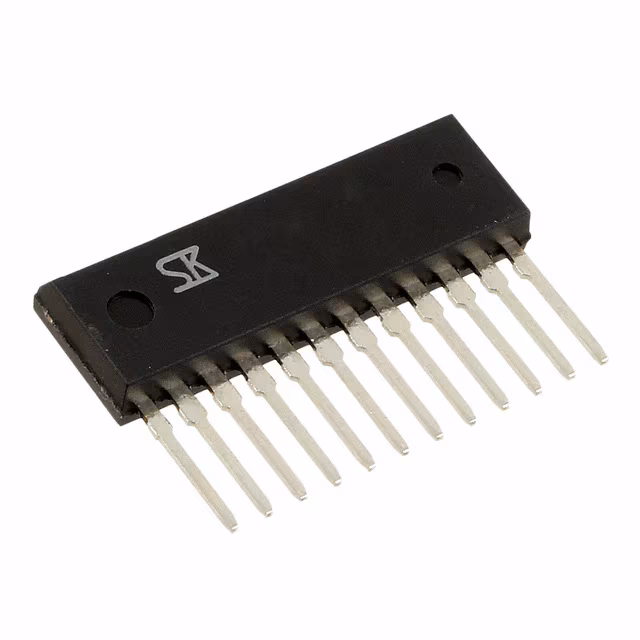

TRANS 4NPN DARL 120V 5A
All alternatives
View full reportTechnical parameters
| Power | |
|---|---|
| Current - Collector Cutoff (Max) | 10µA (ICBO) |
| Current - Collector (Ic) (Max) | 5A |
| Power - Max | 5W |
| Voltage - Collector Emitter Breakdown (Max) | 120V |
| AC and DC characteristics | |
| DC Current Gain (hFE) (Min) @ Ic, Vce | 2000 @ 3A, 2V |
| Frequency - Transition | - |
| Environment and package | |
| Mounting Type | Through Hole |
| Operating Temperature | 150°C(TJ) |
| Package | Tube |
| Package / Case | 12-SIP |
| Supplier Device Package | 12-SIP |
| Other | |
| Mfr | Sanken |
| Product Status | Active |
| Series | - |
| Transistor Type | 4 NPN Darlington (Quad) |
| Vce Saturation (Max) @ Ib, Ic | 1.5V @ 3mA, 3A |
