View full reportTechnical parameters
| Environment and package | |
|---|---|

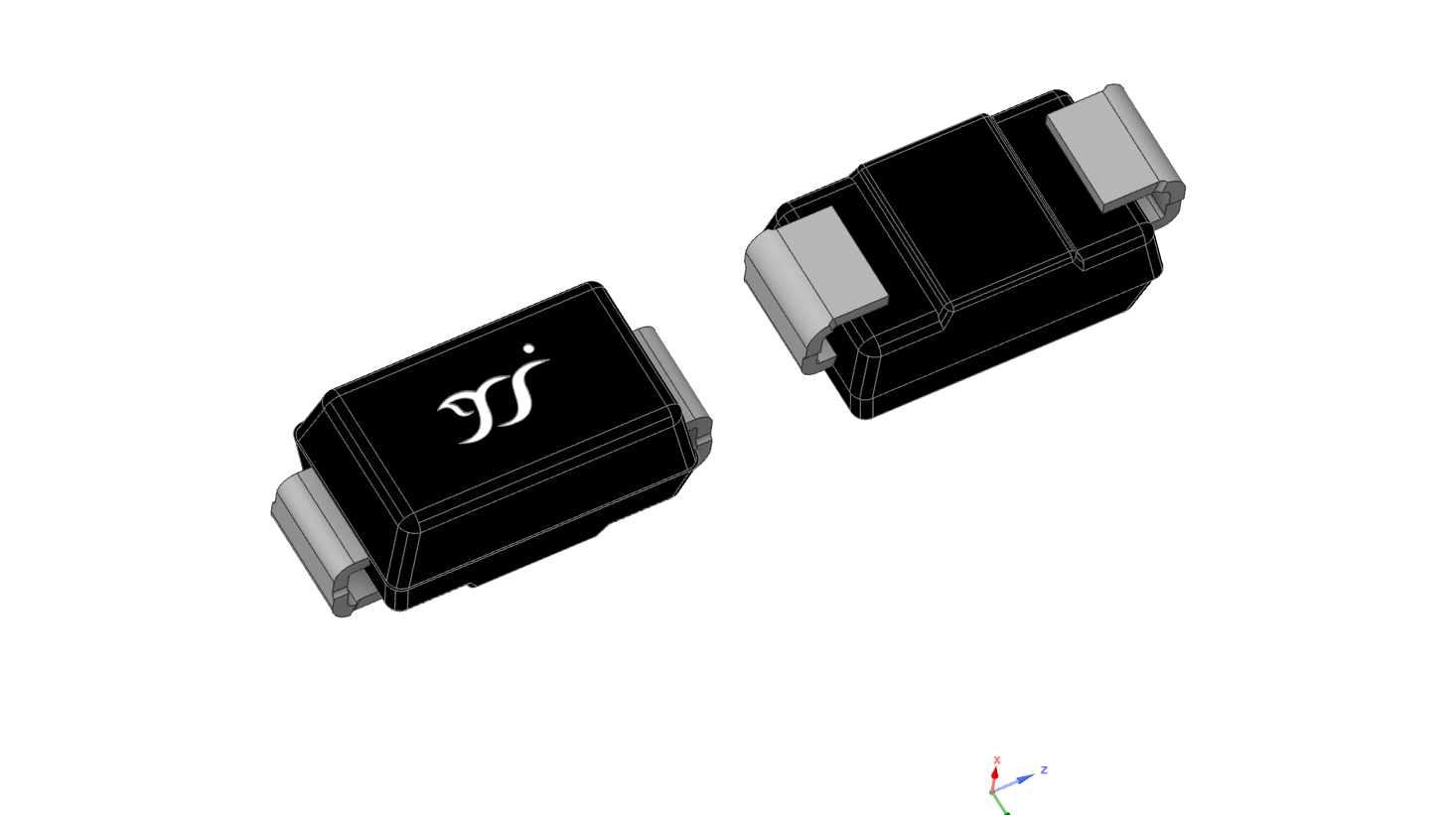

| Package | SMA |
| Other | |
| IR@VR(V) | 76 |
| IR@VR(μA) | 1 |
| IZK(mA) | 0.25 |
| Izm(mA) | 9 |
| IZT(mA) | 2.5 |
| PD(W) | 1 |
| Status | Active |
| Tj（℃） | -55～+150 |
| VF@IF=200mA(V) | 1.2 |
| VZ_Max@IZT(V) | 105 |
| VZ_Min@IZT(V) | 95 |
| VZ_Typ@IZT(V) | 100 |
| ZZK@IZK(Ω) | 3000 |
| ZZT@IZT(Ω) | 350 |
