MDDGermany

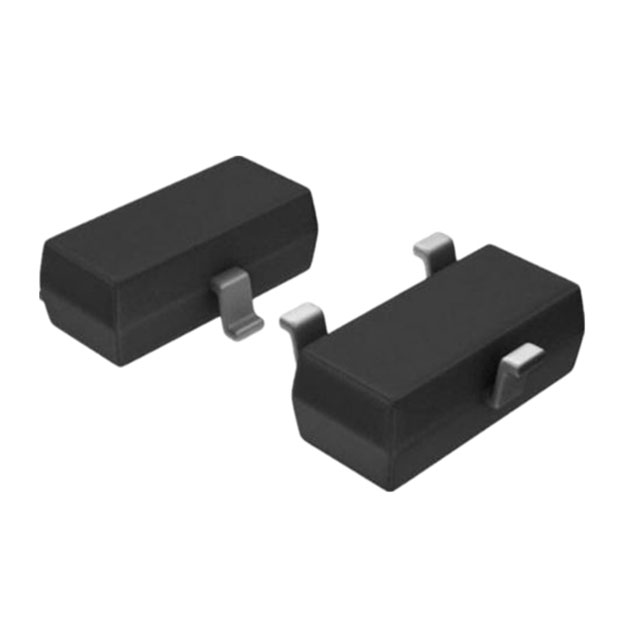

TVS DIODE 12V/7V, 20V/12V SOT23
All alternatives
View full reportTechnical parameters
Key specs
Reverse standoff voltage12 V
Breakdown voltage7.5 ~ 13.3 V
Peak pulse power400 W
PolarityBidirectional
| Power | |
|---|---|
| Bidirectional Channels | 2 |
| Current - Peak Pulse (10/1000µs) | 5A (8/20µs) |
| Power Line Protection | Yes |
| Power - Peak Pulse | 400W |
| Voltage - Breakdown (Min) | 13.3V, 7.5V |
| Voltage - Reverse Standoff (Typ) | 12V (Max), 7V (Max) |
| AC and DC characteristics | |
| Capacitance @ Frequency | 75pF @ 1MHz |
| Environment and package | |
| Mounting Type | Surface Mount |
| Operating Temperature | -55°C ~ 150°C (TJ) |
| Package | Tape & Reel (TR) |
| Package / Case | SOT-23 |
| Supplier Device Package | SOT-23 |
| Other | |
| Applications | General Purpose |
| Mfr | MDD |
| Product Status | Active |
| Series | - |
| Type | Zener |
